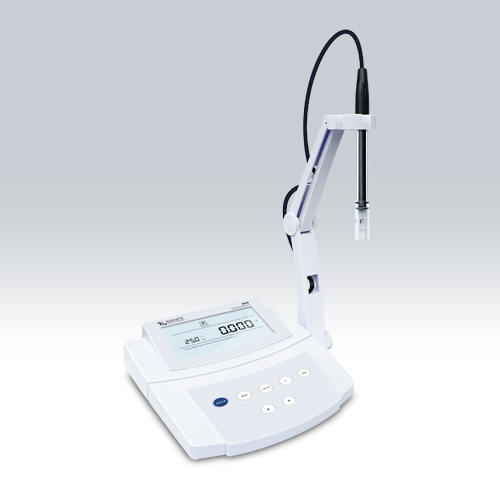

Bante510 Benchtop Conductivity/TDS Meter

short description:

High-performance conductivity/TDS meter, 1 to 3 points calibration, selectable TDS conversion factor, setup menu contains 7 options, accuracy: 1% F.S.


Product Detail

Product Tags

Features

• High-performance conductivity/TDS meter is suitable for laboratory application.

• 1 to 3 points calibration with automatic recognition for conductivity standards.

• Selectable cell constant, temperature coefficient and TDS factor.

• Automatic temperature compensation corrects conductivity measurment to reference temperature.

• Auto-Read function senses and locks the measurement endpoint.

• Setup menu allows setting the number of calibration points, temperature unit, etc.

• Reset function automatically resumes all settings back to the factory defaults.

1

Applications

• Water quality analysis

• Research and educations

• Environmental monitoring and other industrial applications

Specifications

   Model Bante510
   Conductivity
   Range 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
   Resolution 0.001, 0.01, 0.1, 1
   Accuracy ±1% F.S.
   Calibration Points 1 to 3 points
   Calibration Solutions 10µS, 84µS, 1413µS, 12.88mS, 111.8mS
   TDS
   Range 0 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt
   Resolution 0.01, 0.1, 1
   Accuracy ±1% F.S.
   TDS Factor 0.1 to 1.0 (default 0.5)
   Temperature
   Range 0 to 105°C/32 to 221°F
   Resolution 0.1°C/0.1°F
   Accuracy ±1°C/±1.8°F
   Offset Calibration 1 point
   Calibration Range Reading ±10°C
   General Specifications
   Temperature Compensation 0 to 100°C/32 to 212°F, manual or automatic
   Temperature Coefficient Linear (0.0 to 10.0%/°C)
   Reference Temperature 25°C
   Cell Constant K=0.1, 1, 10 or custom
   Hold Function Manual or auto-endpoint
   Connector 6-pin nimi-DIN, 3.5mm jack socket
   Display Custom LCD (120×60mm)
   Power DC9V, using AC adapter, 220V/50Hz
   Dimensions 210(L)×205(W)×75(H)mm
   Weight 1.5kg
