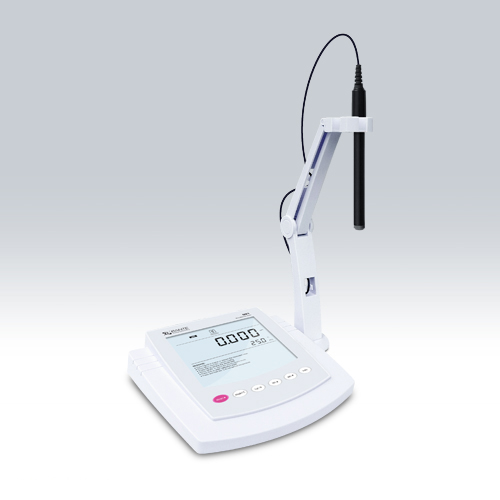

Bante931-Ag Benchtop Silver Ion Meter

short description:

Precision benchtop silver ion meter, suitable for laboratory applications, accuracy: 1% F.S.


Product Detail

Product Tags

Features

• Precision benchtop fluoride ion meter is equipped with a large backlit LCD display.

• 2 to 5 points calibration, including the 8 concentration points can be selected.

• Direct ion concentration readout simplifies the measurement process.

• Selectable concentration units - ppm, mg/L and mol/L.

• Automatic temperature compensation ensures accurate readings over the entire range.

• Auto-Read function senses and locks the measurement endpoint.

1

• Calibration due alarm prompts user to calibrate the meter regularly.

• Automatic electrode diagnosis shows the calibration points and slopes.

• Setup menu allows setting the number of calibration points, ionic valency, stability criteria, temperature unit, auto-power off, etc.

• Reset function automatically resumes all settings back to the factory defaults.

• Expanded memory stores or recalls up to 500 data sets.

• USB communication interface is easy to transfer data to PC.

Specifications

   Model   Bante931-Ag
   Ion Concentration
   Range   1×10-7 to 1M, 0.01 to 107900ppm
   Resolution   0.001, 0.01, 0.1, 1
   Accuracy   ±1% F.S.
   Calibration Points   2 to 5 points
   Calibration Solutions   0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
   Measurement Units   ppm, mg/L, mol/L, mmol/L
   mV
   Range   ±1999.9mV
   Resolution   0.1mV
   Accuracy   ±0.2mV
   Temperature
   Range   0 to 105°C/32 to 221°F
   Resolution   0.1°C/0.1°F
   Accuracy   ±0.5°C/±0.9°F
   Offset Calibration   1 point
   Calibration Range   Reading ±10°C
   General Specifications
   Temperature Compensation   0 to 100°C/32 to 212°F, manual or automatic
   Stability Criteria   Low or high
   Calibration Due Alarm   1 to 31 days or off
   Memory   Stores up to 500 data sets
   Output   USB communication interface
   Connector   BNC, 3.5mm jack socket
   Display   Custom LCD (125×100mm)
   Power   DC5V, using AC adapter, 220V/50Hz
   Dimensions   210(L)×188(W)×60(H)mm
   Weight   1.5kg
