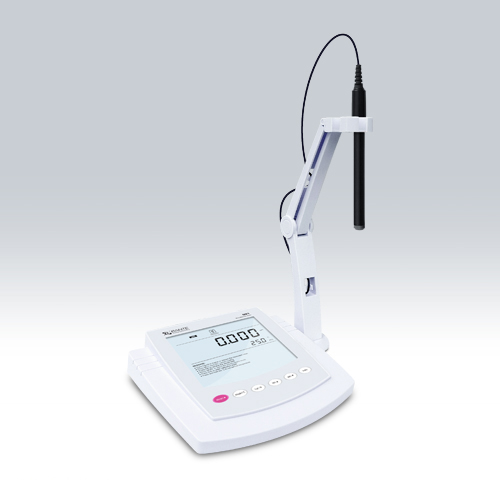

Bante931-NO3 Benchtop Nitrate Ion Meter

short description:

Precision benchtop nitrate ion meter, suitable for laboratory applications, accuracy: 0.5% F.S.


Product Detail

Product Tags

Features

• Precision benchtop fluoride ion meter is equipped with a large backlit LCD display.

• 2 to 5 points calibration, including the 8 concentration points can be selected.

• Direct ion concentration readout simplifies the measurement process.

• Selectable concentration units - ppm, mg/L and mol/L.

• Automatic temperature compensation ensures accurate readings over the entire range.

• Auto-Read function senses and locks the measurement endpoint.

1

• Calibration due alarm prompts user to calibrate the meter regularly.

• Automatic electrode diagnosis shows the calibration points and slopes.

• Setup menu allows setting the number of calibration points, ionic valency, stability criteria, temperature unit, auto-power off, etc.

• Reset function automatically resumes all settings back to the factory defaults.

• Expanded memory stores or recalls up to 500 data sets.

• USB communication interface is easy to transfer data to PC.

Specifications

   Model Bante931-NO3
   Ion Concentration
   Range 7×10-6 to 1M, 0.4 to 62000ppm
   Resolution 0.001, 0.01, 0.1, 1
   Accuracy ±0.5% F.S.
   Calibration Points 2 to 5 points
   Calibration Solutions 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
   Measurement Units ppm, mg/L, mol/L, mmol/L
   mV
   Range ±1999.9mV
   Resolution 0.1mV
   Accuracy ±0.2mV
   Temperature
   Range 0 to 105°C/32 to 221°F
   Resolution 0.1°C/0.1°F
   Accuracy ±0.5°C/±0.9°F
   Offset Calibration 1 point
   Calibration Range Reading ±10°C
   General Specifications
   Temperature Compensation 0 to 100°C/32 to 212°F, manual or automatic
   Stability Criteria Low or high
   Calibration Due Alarm 1 to 31 days or off
   Memory Stores up to 500 data sets
   Output USB communication interface
   Connector BNC, 3.5mm jack socket
   Display Custom LCD (125×100mm)
   Power DC5V, using AC adapter, 220V/50Hz
   Dimensions 210(L)×188(W)×60(H)mm
   Weight 1.5kg
