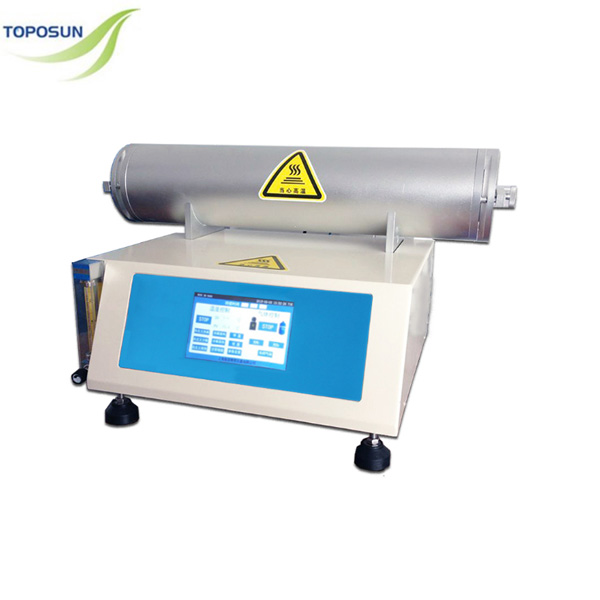

Summary：
New upgraded intelligent touch model with automatic gas switching function.
Application: Suitable for testing carbon black content in polyethylene, polypropylene and polybutene plastics.

Technical Features:

1. 5-inch wide touch screen control. It displays real-time temperature, set temperature, decomposition status, pyrolysis status, constant temperature status, air pipeline calcination, operation time, oxygen filling and nitrogen filling status on one screen for easy operation.
2. Integrated design of heating furnace and control system, convenient for instrument management.
3. Temperature program segments for pyrolysis, decomposition and pipeline calcination can be saved automatically. Users only need one-click start, eliminating repeated temperature setting and realizing fully automatic control.
4. Automatic switching between nitrogen and oxygen, equipped with high-precision float flowmeter.
5. Optional rapid cooling unit for fast temperature reduction and higher equipment utilization.
6. Double-knob furnace door design, convenient for sample loading and unloading.
7. Nano thermal insulation blanket delivers outstanding heat insulation performance and uniform furnace temperature.
8. Compliant with standards including but not limited to GB/T 2951.8, GB/T 13021, JTG E50 T1165, IEC 60811-4-1, ISO 6964.

Technical Parameters:

1. Temperature range: Ambient temperature ~ 1000 ℃
2. Furnace tube size: Φ30 mm × 500 mm
3. Heating element: Resistance wire
4. Display: 7-inch wide touch screen
5. Temperature control: PID programmable control, automatic memory of temperature program segments
6. Power supply: AC220V, 50/60Hz
7. Rated power: 1KW
