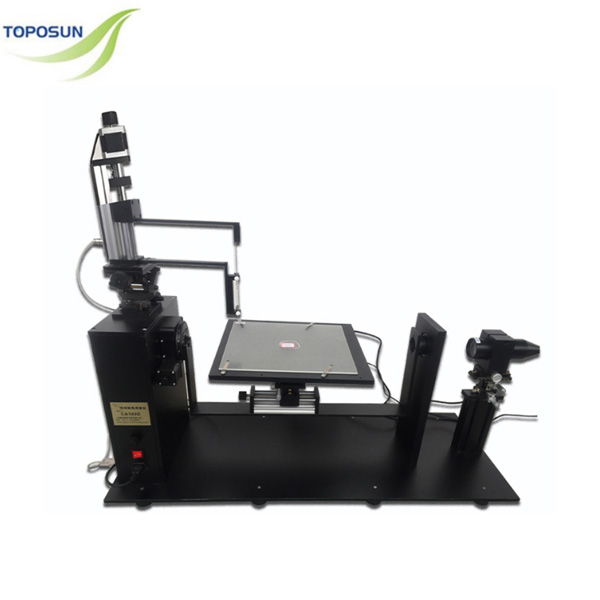

TPS-CA-100C Contact Angle Meter

Summary
360° manual rotary design, equipped with automatic injector and automatic contact angle calculation. Humanized design ensures high repeatability and stability of test results. Supporting software is included.

Technical Features
● The whole instrument frame is made of all-metal aluminum alloy, sturdy and durable. Modular structure facilitates disassembly and assembly to meet different precision requirements.
● Threaded adjustable square platform. It can be adjusted freely to keep the droplet platform level even when placed on uneven surfaces.
● Adjustable wide-range camera mounting bracket. Teflon camera protection ring prevents scratches during movement; hex screw locking structure fixes the camera tightly and avoids shaking.
● Ball screw and guide rail design ensures fast and accurate movement of the droplet platform in X and Y directions. Manual movement precision: 0.01 mm. Adjustable travel range up to 80 mm back and forth, for positioning the camera and sample table at the optimal position.
● Adjustable horizontal sample stage for leveling operation.
● Micro-sampler titration with precision of 0.005 μL. Needle locking structure available. Optional stainless steel or PTFE needles for different testing needs. The droplet sampler moves vertically with an adjustable range up to 60 mm.
● Manual 360° rotating platform, rotation accuracy up to 0.01°.
● LED cold backlight with continuously adjustable brightness, showing clear droplet contours. Low heat generation, avoiding droplet evaporation caused by long-time testing.
● High-performance industrial digital camera with high resolution, high definition, good color reproduction and low noise. USB2.0 interface for plug-and-play. Equipped with industrial continuous zoom lens (0.7–4.5×). Standard camera resolution: 2048 × 1536, frame rate: 25 fps. Optional 3MP / 5MP cameras with frame rate up to 100–300 fps.
● Calibration function and standard calibration accessories are provided.
● Built-in video recording function.
● Solid surface free energy can be measured by one-liquid method and two-liquid method.

Technical Parameters
| Item | Specification |
| —- | —- |
| Resolution | 0.01° |
| Measurement Precision | 0.1° |
| Measurement Range | 0°–180° |
| Sample Table – X Manual Travel | 100 mm |
| Sample Table – Y Manual Travel | 80 mm |
| Sample Table – Z Travel | 10 mm, resolution: 0.01 mm |
| Sample Table – Manual Rotation | 0–360°, resolution: 0.01°, clockwise & counter-clockwise |
| Sample Table Size | 300 mm × 300 mm |
| Injection System | Automatic sampler with high-precision ball screw and high-subdivision stepper motor control system; injection precision: 0.005 μL; single dosage: 0.005–100 μL; continuous dosing rate: 0.005–100 μL/min; support custom dosing & photo capture by program |
| Microinjector | 100 μL |
| Needle Structure | Needle locking structure |
| Injector Z Stroke | Manual stroke 60 mm, precision 0.01 mm |
| Level Adjustment | Adjustable foot for platform leveling; micro-adjustment range: 10 mm, precision: 0.1 mm |
| Light Source | Brightness adjustable monochromatic LED cold light |
| Lens | Industrial continuous zoom lens: 0.7–4.5× |
| Camera Forward & Backward Travel | Manual range: 80 mm, resolution: 0.01 mm |
| Camera Type | Industrial color USB2.0 camera; 1394 interface camera optional |
| Image Format | BMP (no distortion) / AVI video |
| Max Image Resolution | 2048 × 1536; 5MP or higher optional |
| Image Frame Rate | 15–40 fps; custom 100/200/300/1000 fps optional |
| Function – Surface Free Energy | Calculated by one-liquid method and Owens two-liquid method
Range: 0.01–2000 mN/m
Precision: 0.01 mN/m |
| Function – Surface Tension (Hanging Drop Method) | Observe droplet shape & profile, auto analyze surface tension and geometric parameters
Range: 0.01–2000 mN/m
Precision: 0.01 mN/m |
| Software | Contact angle analysis system with software copyright
Test items: static contact angle, dynamic contact angle ( advancing angle, receding angle, tilt angle, sliding angle)
Auto identify three-phase interface; multiple fitting algorithms: height method, single circle, double circle, real contour method
Support multiple sample models: flat, rough plane, concave, convex samples
Multiple capture modes: single test, continuous capture, custom mode
Data management: classify storage, export image & data to Excel/PDF/XPS, print directly
Image processing: binarization, contour processing
Full-range high-precision calibration for contact angle
Auto test + manual modification combined; one-button automatic test workflow |
