Summary：

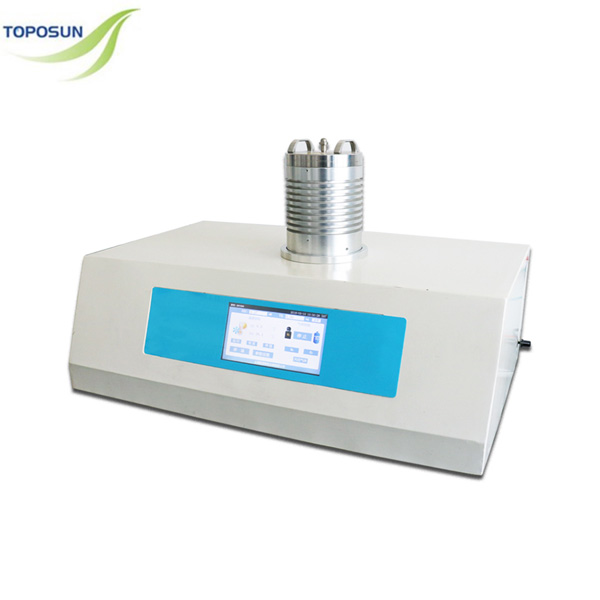

Integrated thermal analysis instrument combines thermogravimetric analysis (TG) with DTA or DSC function. It can obtain TG and DTA/DSC data simultaneously from one single sample in one test run.

It is used to measure physical and chemical changes related to heat, including melting point, fusion heat, crystallization heat, phase transition heat, thermal stability, oxidation induction period, glass transition temperature, adsorption & desorption, composition analysis, decomposition, combination, dehydration and additive analysis.
Widely applied in plastics, rubber, synthetic resin, fiber, coating, grease, ceramics, cement, glass, refractory materials, fuel, pharmaceutical, food and other material industries.

Technical Features:

1. 7-inch wide touch screen, rich display contents including set temperature, sample temperature and DTA signals.
2. Equipped with imported Sartorius balance from Germany, resolution up to 1/100,000 g.
3. Gigabit Ethernet port for fast data transmission, stable communication with auto-reconnection function.
4. Integrated fixed furnace structure, no furnace lifting required. Easy sample loading; heating & cooling rate adjustable freely.
5. External water bath protection to keep the balance at constant temperature.
6. High-temperature resistant metal tray and bracket, supporting real sample temperature up to 1550℃.
7. Mechanical assembly structure, flexible replaceable sample support rod to meet different test requirements.
8. Dual temperature probes for high repeatability of sample temperature measurement. One probe is installed at the bottom of the sample to detect real sample temperature, matched with dedicated temperature control algorithm.
9. Standard calibration samples are provided for user calibration.
10. Software compatible with multiple screen resolutions, supports Windows 2000 / XP / VISTA / Win7 / Win8 / Win10, works on laptops and desktops.
11. Powerful thermal analysis software: supports starting point temperature, end point temperature, extrapolated temperature, peak temperature, area integration, half peak width, enthalpy change, reaction kinetics, TG, DTG and so on. It also supports data management, report generation and raw data export to Excel.
12. User programmable test procedures, dozens of instructions available for flexible combination, realizing one-click automatic measurement.

Technical Parameters：

1. Temperature range: RT ~ 1550 ℃
2. Temperature resolution: 0.01 ℃
3. Temperature accuracy: ±0.1 ℃
4. Heating rate: 0.1 ~ 80 ℃ / min, adjustable
5. Cooling rate: 0.1 ~ 80 ℃ / min (constant cooling above 100 ℃)
6. Constant temperature range: RT ~ 1550 ℃
7. Holding time: 0 ~ 300 min (Recommended ≤30 min when temperature over 1000℃)
8. DSC resolution: 0.01 mW
9. DSC range: 0 ~ ±500 mW
10. DSC sensitivity: 0.1 mW
11. Balance measuring range: 2 g (optional: 10 g, 50 g)
12. Balance: Sartorius from Germany, 1/100,000 g, capable of trace sample weight detection
13. TG resolution: 0.01 mg (optional: 1 ug, 0.1 ug)
14. Display: 7-inch touch screen
15. Communication: Gigabit Ethernet
16. Power: 1000W, AC 220V 50Hz or customized
17. Atmosphere gas: Nitrogen / Oxygen, automatic switching
18. Gas flow rate: 0 – 200 mL/min
19. Gas pressure: 0.2 Mpa
20. Optional crucible: Aluminum alloy crucible Φ6.7*3mm, Ceramic crucible Φ6.7*3mm
21. Calibration standard: Standard substances (Indium, Tin, Lead, Zinc, Silver, Calcium Oxalate, Copper Sulfate Hydrate) for temperature and enthalpy calibration
22. Replaceable platinum bracket for easy disassembly and cleaning
23. Dimension: 90cm × 55cm × 52cm, Net weight:90kg (110kg with outer package)
24. Output coordinate format: TG(mg or %)-DSC-Temp-Time, TG(mg or %) -DSC-Temp
