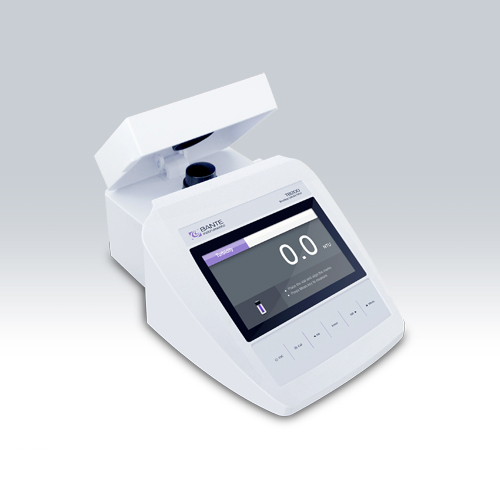

TB200 Benchtop Turbidity Meter

short description:

Multiparameter benchtop turbidity meter with the Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units. The meter is suitable for laboratory use.


Product Detail

Product Tags

Features

• Multiparameter benchtop turbidity meter is equipped with a 4.5 inches TFT display.

• 2 to 7 points calibration using the Formazin Standards.

• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.

• TSS conversion factor ensures the accurate measurement of the total suspended solids.

• Auto-Read function senses and locks a stable reading.

1

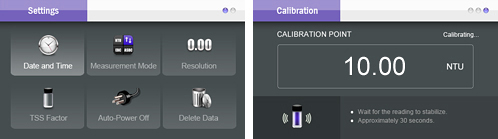

• Setup menu allows setting the date and time, measurement mode, resolution, auto-power off, etc.

• Password protection prevents the unauthorized calibration and settings.

• Expanded memory stores or recalls up to 200 data sets.

• Reset function automatically resumes all settings back to the factory defaults.

• USB communication interface is easy to transfer data to PC.

2

Applications

• Industrial wastewater plants

• Municipal water and other industrial applications

Specifications

   Model TB200
   Turbidity
   Range 0 to 2000 NTU, 0 to 500 EBC, 0 to 9999 ASBC
   Resolution 0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 2000 NTU)
   Accuracy ±2% of reading (0~500 NTU), ±3% of reading (501~2000 NTU)
   Calibration Points 2 to 7 points
   Calibration Standards 0.02, 10, 200, 500, 1000, 1500, 2000 NTU
   TSS
   Range Deponding on the TSS conversion factor
   Resolution 0.1, 1
   Accuracy ±3% of reading
   General Specifications
   Light Source Infrared-emitting diode (850nm wavelength)
   Detector Silicon photodiode
   Stray Light <0.02 NTU
   Sample Volume 30ml
   Memory Stores up to 200 data sets
   Output USB communication interface
   Display 4.5" TFT LCD
   Power DC12V, using AC adapter, 220V/50Hz
   Dimensions 250(L)×177(W)×96(H)mm
   Weight 1.2kg
