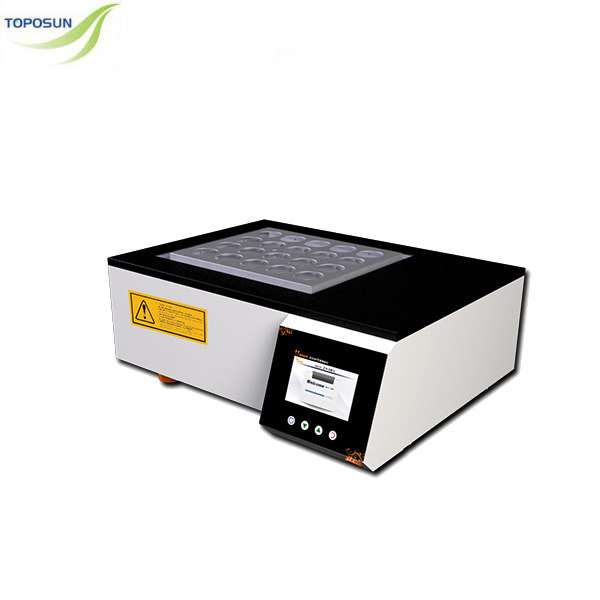

TPS-SH220F Kjeldahl digestion system, Graphite Digester, graphite digestion system with waste gas collection hood

short description:

SH220N Graphite Digester includes globally advanced technology, features quick digestion, high efficiency and easy for use, etc., is widely used in such fields as food, medicine, agriculture, forestry,environmental protection, chemical engineering, biochemistry, as well as universities, research departments and so on, for sample digestion prior to the chemical analysis of soil, feed, plants,seeds, minerals etc., suitable for matching K9840 analyzer.


Product Detail

Product Tags

Product Description

SH220N Graphite Digester includes globally advanced technology, features quick digestion, high efficiency and easy for use, etc., is widely used in such fields as food, medicine, agriculture, forestry,environmental protection, chemical engineering, biochemistry, as well as universities, research departments and so on, for sample digestion prior to the chemical analysis of soil, feed, plants,seeds, minerals etc., suitable for matching K9840 analyzer.

Characteristics:
20 positions, enhance working efficiency rapidly.
It adopt advanced insulation technology, eco-friendly, reduce energy intensity maximum limitedly.
Corrosion-resistant design.
It adopt advanced PID temperature control technology, high accuracy heating up to 400℃ only cost 25minutes.
Multi-protection, Over-current protection, high temperature warning, overload protection.
LCD display

It’s used with microwave reaction system, pretreat for microwave digestion or removing acid after digestion.

Linear and curve temperature rise mode, up to 5 stages temperature setting.
Temperature range Room temperature +5 - 450℃
Temperature accuracy ±1℃
Heating method Infrared heating and high-purity graphite conduction
Heating insulation method Ceramic fiber and unique air duct insulation technology
Digestion tube capacity 300ml
Capacity per batch 20pcs/batch
Power supply 220 VAC±10% 50HZ
Power 3600W
Dimensions 515mmX421mmX211mm
Net weight 25Kg
