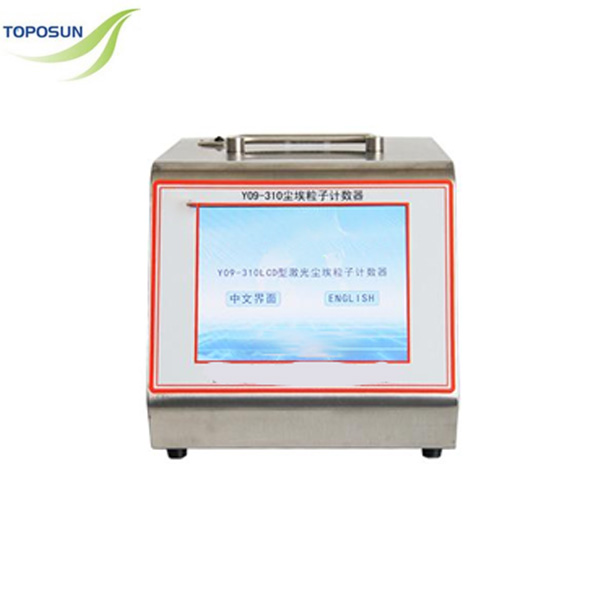

This product is a new generation of high-end dust particle counter jointly developed and developed. The control mode is upgraded from the old touch button control to touch screen control, 5-inch color LCD touch screen (display size 162mm wide*121 mm high, display ratio 4:3), the large visual interface makes the operation more simple and intuitive. Products using imported air pump, lower noise, less electromagnetic interference; The power supply adopts large-capacity lithium battery and DC power adapter to convert power supply, the shape design is simple, small size, light weight, easy to use, and the full stainless shell can better meet the requirements of GMP.
Sampling flow rate 2.83L/min ±5%
Particle size classification 0.3um,0.5um,1um,3um,5um,10um
Light source Long life laser diode
Repetition relative error <±10%
Particle size distribution error <±30%
Clean-down capability ≤10min
Maximum sampling concentration 35000 particles/Liter
Sampling time User set(5‑9999seconds)
Sampling delay 0‑100 seconds
Data memory capacity 5000 group measurement data
Screen display Color 5inch touch screen
Print way Built-in thermal printer
Power supply AC220V/50Hz; DC16.8V
Environment Using environment: 0~40°C, 10~90%RH
Overall dimension 315×260×230mm
Material SUS304
Weight 7kg
