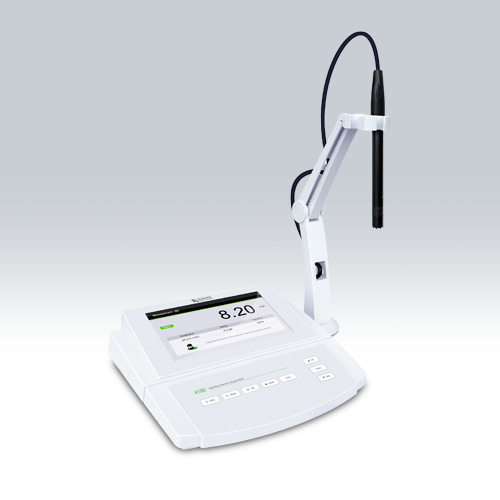

A181 Benchtop Dissolved Oxygen Meter

short description:

Professional benchtop dissolved oxygen meter, 7 inch TFT display, stores up to 1000 data sets, setup menu contains 17 options, accuracy: 0.2mg/L.


Product Detail

Product Tags

Features

• Professional benchtop dissolved oxygen meter is equipped with a 7 inch TFT display.

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

• Salinity and barometric pressure compensations eliminate the measurement error.

• Auto-Read function senses and locks the measurement endpoint.

• Timed Interval Readings sends the measurement data to a PC or printer.

15407091469690

• Limit Alarm automatically alerts when reading exceeds the specified range.

• Calibration due alarm prompts user to calibrate the meter regularly.

• Calibration report shows the date, time, calibration point, etc.

• Password protection prevents the unauthorized calibration and settings.

• Expanded memory stores or recalls up to 1000 data sets.

• Reset function automatically resumes all settings back to the factory defaults.

Specifications

   Model A181
   Dissolved Oxygen
   Range 0.00 to 20.00mg/L
   Resolution 0.01mg/L
   Accuracy ±0.2mg/L
   % Saturation of Oxygen
   Range 0.0 to 200.0%
   Resolution 0.1%
   Accuracy ±2.0%
   General Specifications
   Calibration Points 1 or 2 points
   Temperature Compensation 0 to 50°C/32 to 122°F, automatic
   Pressure Correction 60.0 to 112.5kPa/450 to 850mmHg, manual
   Salinity Correction 0.0 to 50.0g/L, manual
   Measurement Modes DO
   Stability Criteria Standard or high-accuracy
   Calibration Due Alarm 1 to 31 days or off
   Interval Readings 10, 30, 60 seconds, 10, 30 minutes or off
   Password Protection 4 digits
   Memory Stores up to 1000 data sets
   Output USB communication interface
   Connector 6-pin nimi-DIN
   Display 7” TFT LCD
   Power DC12V, using AC adapter, 220V/50Hz
   Dimensions 240(L)×220(W)×80(H)mm
   Weight 1.7kg
