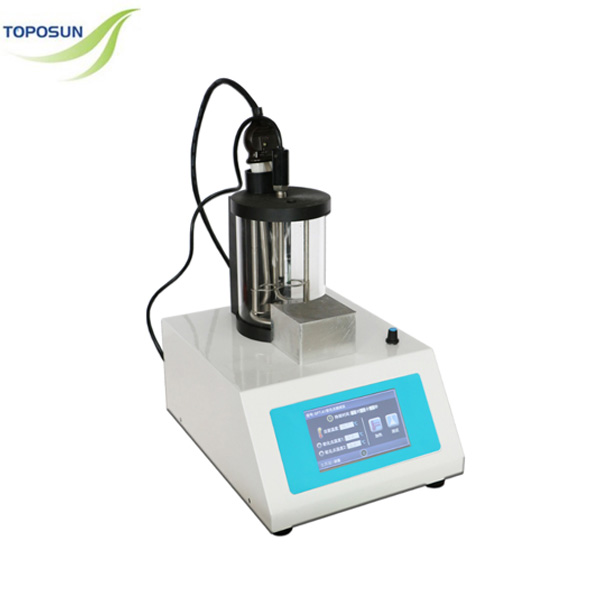

TPS-SPT-A Series Softening Point Tester
TPS-SPT-A Series Softening Point Tester
Summary
This instrument is computer-controlled with automatic electronic photoelectric measurement. It adopts a 5-inch touch screen for control and display, and the heating rate can be adjusted freely. Heating parameters for distilled water and glycerine can be switched randomly to guarantee linear temperature rise of the liquid.
Technical advantages
● Intelligent software provides excellent temperature stability. PID automatically sets optimal parameters for different media; parameters are also available for manual adjustment for special usage.
● Infrared scanning, automatic control, adjustable speed and automatic stirring function.
● Two-stage heating rate adjustable.
● Optional data transmission software for monitoring heating rate and heating curve.
Standards
It meets the following standards but is not limited to:
GB∕T 4507-2014, T0606-2000, GB/T 15332-1994
ASTM E28-1999 R2009 Standard Test Methods for Softening Point of Resins Derived from Naval Stores by Ring-and-Ball Apparatus
