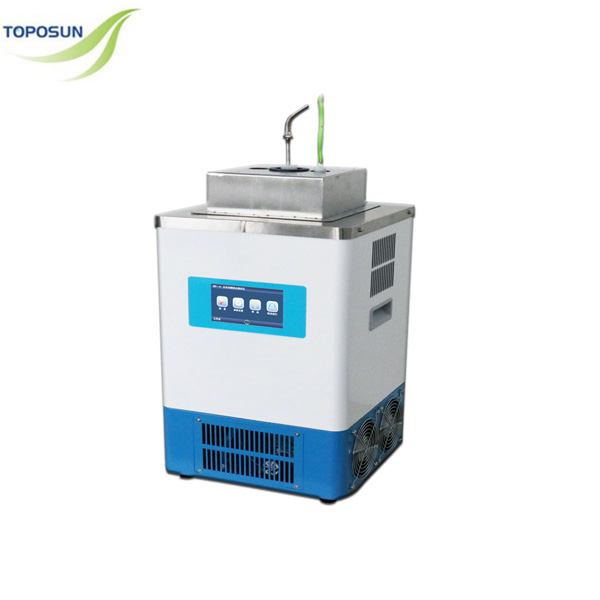

TPS-WMT Series Wax Melting Point Tester

Summary
The melting point (cooling curve) method is especially suitable for petroleum waxes with high paraffin content or crystalline type, which contain a large amount of crystallized hydrocarbons at the same temperature. Heat of fusion is released during cooling, slowing the cooling rate temporarily and forming a stagnation zone on the cooling curve.
The device automatically collects the temperature curve, automatically calculates and identifies the temperature stagnation zone to obtain the melting point of the sample.

Technical advantages
● Operation mode: fully automatic control. The instrument tests melting point without manual temperature monitoring.
● Customizable parameters including water-bath set temperature, sampling interval and temperature retention times. Intelligent automatic design adapts to different test requirements.
● Control method: PID temperature control program, water bath heating and internal circulation system for uniform heating.
● 5-inch 24-bit color touch screen. The curve can be viewed directly on the screen. Tests are easy to operate with minimal training required.
● Data output: standard USB interface or RS232 serial port for PC connection. Supporting software collects temperature curves.
● Equipped with 2 or 5 Pt100 temperature probes. One built-in probe controls the water bath temperature and others measure sample temperature, greatly reducing temperature test error.

Standards
It meets the following standards but is not limited to:
GB/T 2539-2008

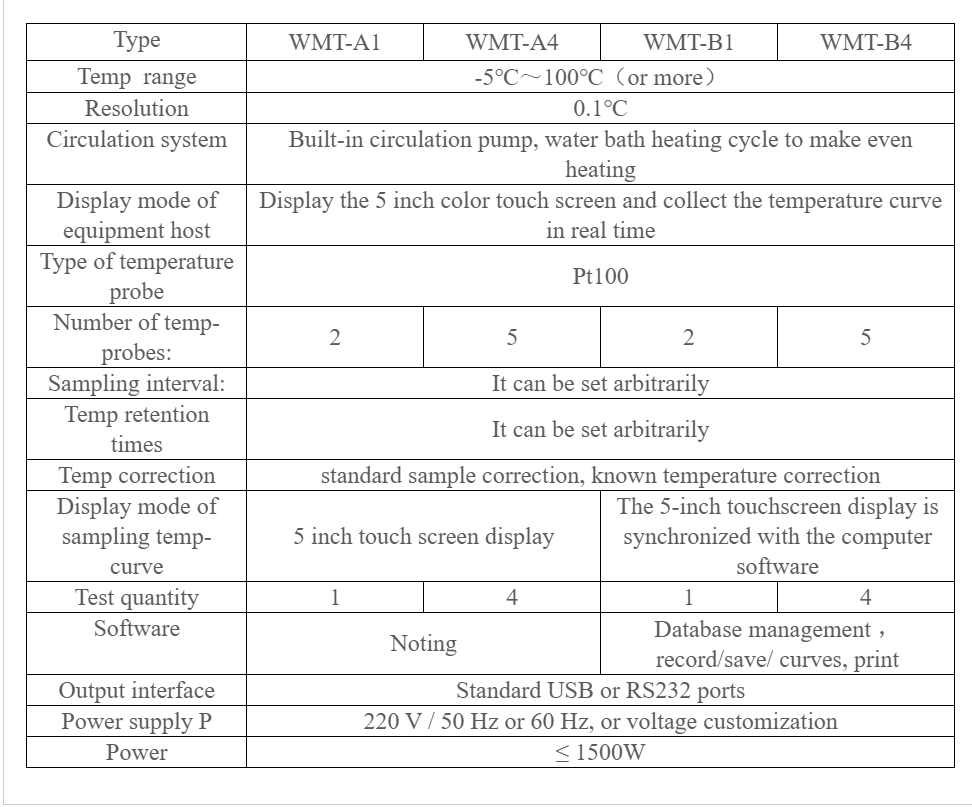

Parameters:
微信图片_20260405134332_345_337
