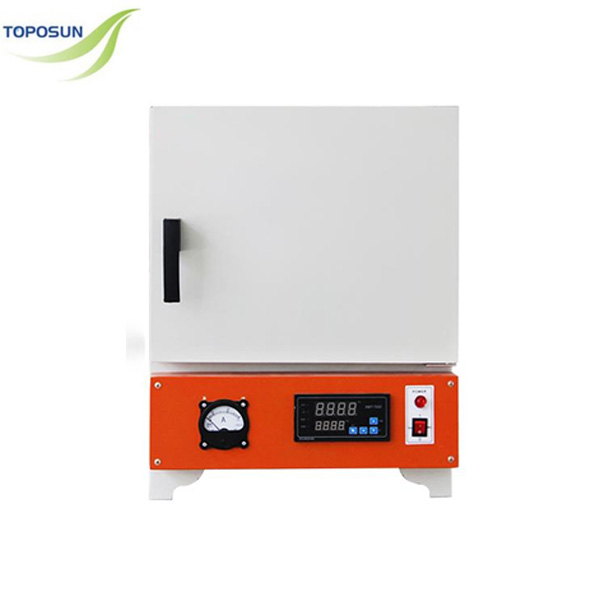

The resistance furnace is a furnace controlled integrated body, with a shell made of steel plate folded and welded. The surface of the shell is sprayed with electrostatic spray, and the paint film is beautiful and firm. The furnace is a full fiber integrated structure that integrates the furnace mouth and furnace. The furnace is embedded with electric heating wires, and the furnace body and shell are air insulated. The surface temperature rise is low, the working environment is good, the structure is reasonable, and the use and maintenance are convenient.
Model Rated power (Kw) Voltage(V) Rated temperature (°C) Size of workroom (mm)
SX2-2.5-10 2.5 220 1000 20012080
SX2-4-10 4 220 1000 300200120
SX2-8-10 8 380 1000 400250160
SX2-12-10 12 380 1000 500300200
SX2-2.5-12 2.5 220 1200 20012080
SX2-5-12 5 220 1200 300200120
SX2-10-12 10 380 1200 400250160
SX2-12-12 12 380 1200 500300200
SX2-4-13 4 220 1300 250150120
SX2-6-13 6 380 1300 250150100
SX2-8-13 8 380 1300 500200180
SX2-10-13 10 380 1300 400200160
