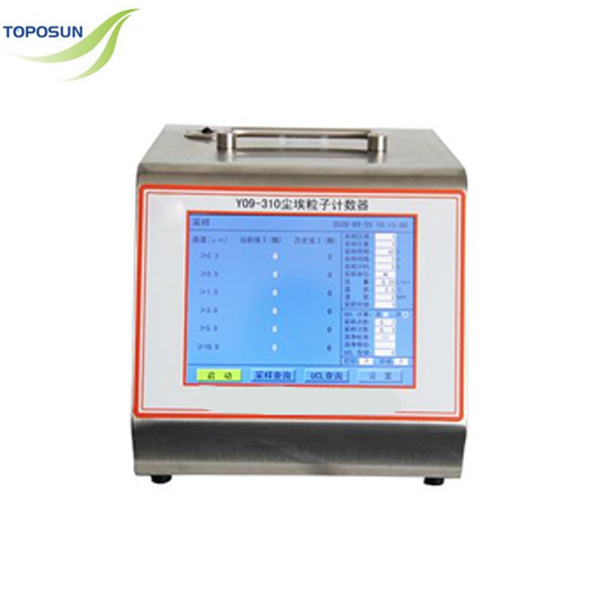

The Y09-310 laser dust particle counter (28.3L/min) is used to measure the size and number of dust particles in a unit volume of air in a clean environment. It is widely used in industry such as medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace, etc.
Sampling flow rate 28.3L/min ±5% (1CFM)
Particle size channels 0.3um,0.5um,1um,3um,5um,10um
Light source Long Life Laser Diode
Repeatability relative error <±10%
Particle size distribution error <±30%
Maximum sampling concentration 35000 particle/Liter
Zero count ≤10min
Sampling time User defined (0…9999S)
Working time About 5 hours
Storage capacity 5000 sets of measurement data
Display 8 inch colorful touch screen
Printer Built-in thermal Printer
Power supply AC 220V/50Hz
Battery DC 16.8V,18650 lithium battery
Environment 0~40°C, 10~90%RH
Product dimension L315×W260×H230mm
Material SUS304
Weight 8Kg
