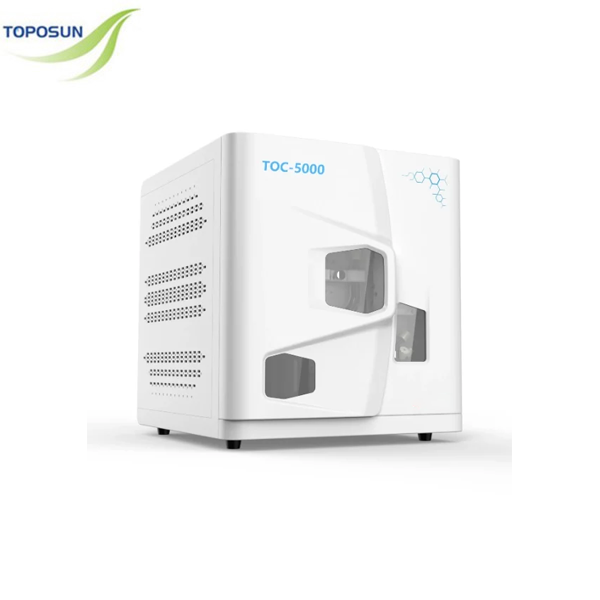

[Product Advantages of TOC-5000 RN/RD Total Organic Carbon Analyzer]
1. Auto sample dilution, auto acid-adding and auto gas purging (Only TOC-5000 RD).

2. 680℃ catalytic oxidation technology with high-efficient catalyst, especially for seawater test. Max. temp.: 1000℃

3. TOPOSUN unique NDIR detector, German made light source, higher sensitivity and stability, longer servcie time.

4. Optional liquid or solid autosampler (AS-W20/AS-S200).

5. Multi-functional operating software; Optional CFR software.

6. Precise gas flow control technology improves accuracy.

7. PID temperature controlling technology, ensure higher accuracy.

8. Unique three-stage dehydration technology improves drying efficiency.

9. Personalized standard curve management provides great convenience for users.

10. Consumables management reminds users to replace consumables in time.

11. Modular design, simplifying device operation and maintenance.

[Technical Specifications]
Model

TOC-5000 RN

TOC-5000 RD

Measurement Method

High Temperature Catalytic Combustion

Detector

NDIR

Analysis Parameter

TC, TIC, TOC , NPOC

Control Mode

PC software controlled

Gas Requirement

Oxygen, purity ≥99.995%

Sample Type

Liquid sample (AS-W20 is optional.)

Solid sample ( AS-S200 is needed.)

MeasurementRange

0-1000mg/L, canextend to 0-100,000mg/L

( Manually dilution)

0-1000mg/L, can extend to 0-100,000mg/L

( Automatically dilution)

Limit of Detection

TC: 50μg/L

IC: 20μg/L

Measuring Time

TC: around 4min

IC: around 3min

Max. Permissible Error

TOC: ± 5%

IC: ± 4%

Repeatability

≤3%

Injection Volume

TC: 100-500μL

IC: 100-2000μL

Power Requirement

AC110/220V, 50/60Hz, 700W
