Product Features

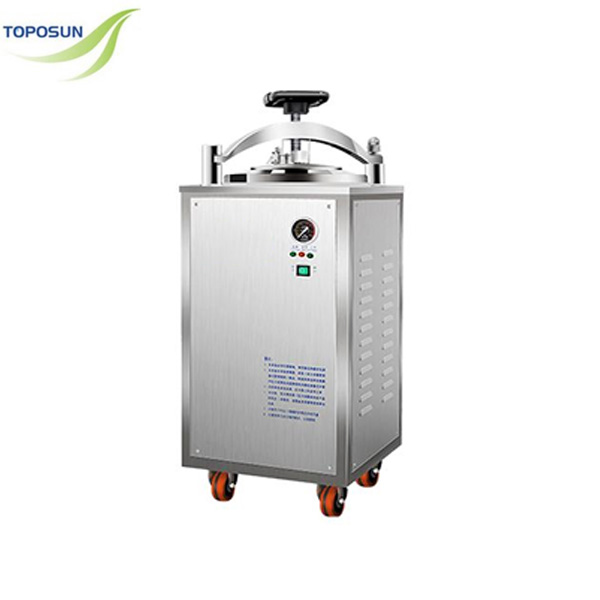

Handwheel type door opening structure
Mechanical safety interlock device
Overpressure self release 0.145-0.165Mpa
Maximum working temperature 126°C-128°C
Water cut-off protection control
Indicator light shows working status
Self expanding seal
Double scale Class II reading pressure gauge
All stainless steel material
Model Volume Power supply Power Dimension of sterilizing chamber Weight Package size
XFH-30MA 30L 220V 3.5KW Φ280×400MM 47KG 610×510×1170MM
XFH-40MA 40L 220V 3.5KW Φ340×425MM 55KG 570×570×1250MM
XFH-50MA 50L 220V 3.5KW Φ340×525MM 58KG 570×570×1300MM
XFH-75MA 75L 380V 4.5KW Φ380×530MM 77KG 630×630×1400MM
