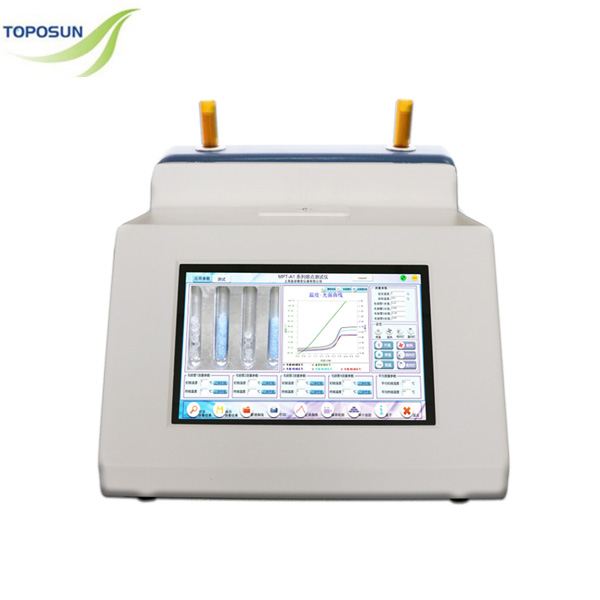

TPS-MPT-V Series Video Melting Point Meter
It meets the following standards but is not limited to the following standards:
GB/T 24892-2010、 GB/T 12766-2008
TPS-MPT-V Series Video Melting Point Meter
Summary
The automatic video melting point tester is essential testing equipment for food, pharmaceutical and chemical industries. It is used to detect the melting point of pharmaceuticals, reagents, spices, dyes and other organic crystalline substances.
The MPT series melting point meter adopts HD video capture technology. It can clearly display the sample melting process under temperature-controlled heating, and automatically capture images at initial melting and final melting stages.
It complies with all pharmacopoeia test methods.
Technical advantages
● Built-in 10.8-inch industrial touch computer with integrated analysis software.
● Embedded HD camera with 2MP to 5MP pixels for real-time monitoring of sample melting process.
● Simultaneous measurement of four samples.
● Standard 4-port USB interface and 1 WIFI network port on the rear panel, easy to connect mouse, keyboard, laser printer, USB flash drive and other external devices.
● Linear heating rate infinitely adjustable from 0.1 ℃ to 30.0 ℃/min.
● Streamlined cooling and exhaust duct design for fast cooling, improving sample testing efficiency.
● 30G built-in storage for test curves and videos, supporting external storage expansion.
● Powerful database management function for classified storage of test data; automatically associates initial melting and final melting images.
● Temperature coefficient calibrated with standard samples before delivery for direct use.
● Software supports audit trail, electronic signature, hierarchical user management and flexible permission allocation. Traceable events can be exported.
● Complies with all pharmacopoeia test methods.

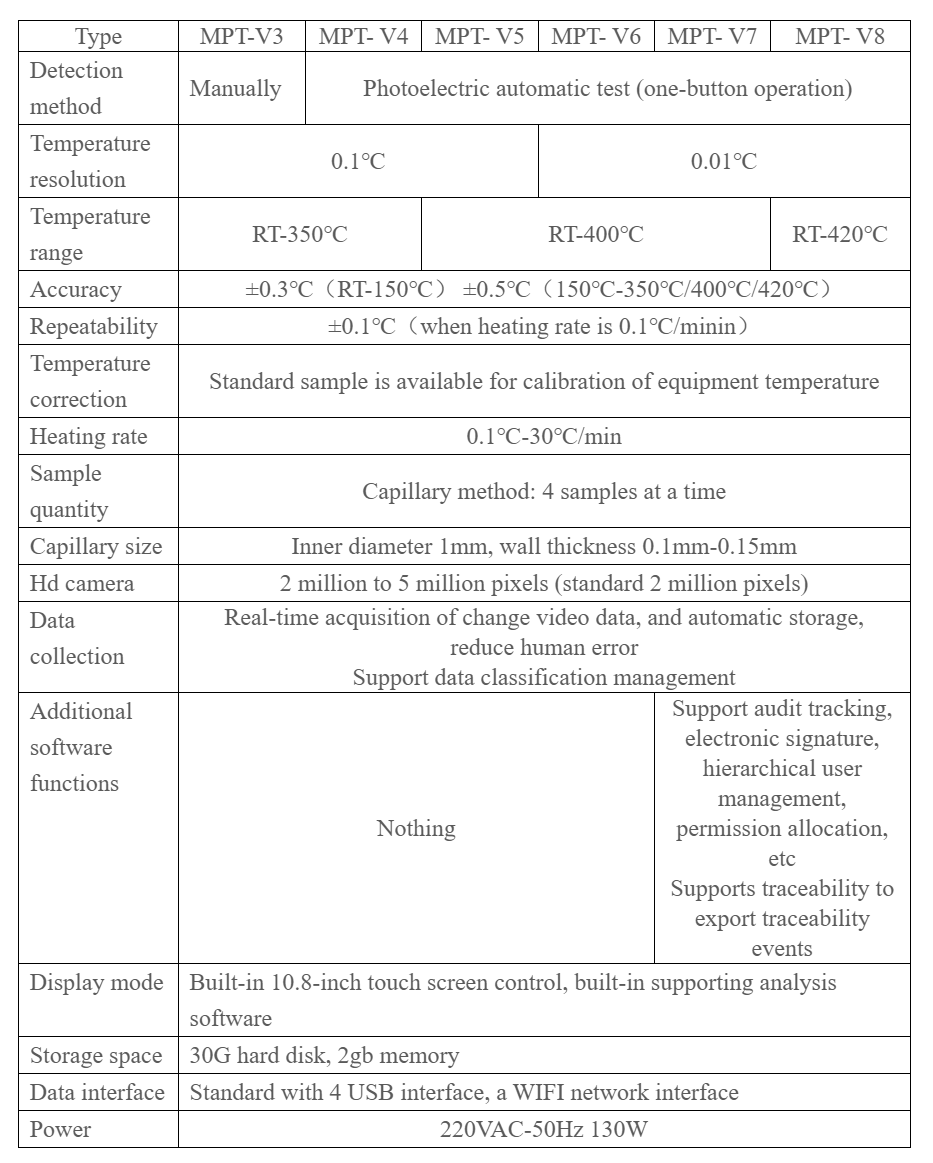

Parameters:
