Features
Aluminum shell, large space draft shield
LCD with white backlight & black font
Tare function
Language: Chinese / English
Overload alarm, level indicator
Standard interface: RS232, optional printer
Date / time / sample quantity setting
Auto store 200 data records, support delete & continue
Inquiry & print: test date, time, checker, machine number, raw silk size distribution, hank number, sum, average fineness, denier deviation, maximum deviation
Specifications
Item Parameter

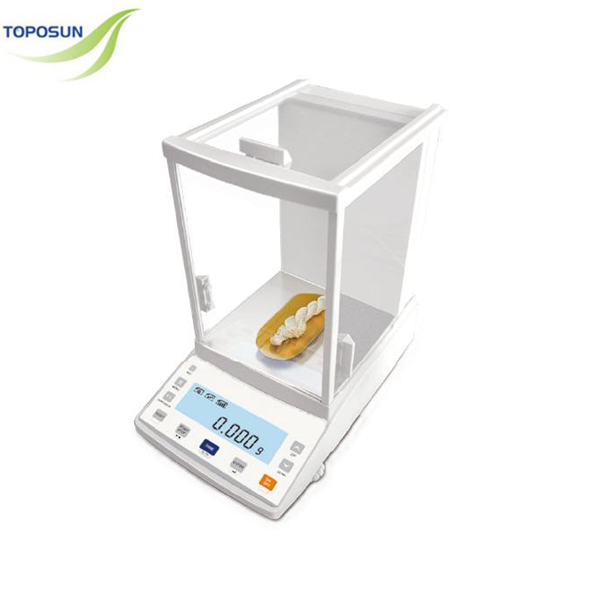

Model YG101
Capacity 110 g (99.5 D)
Readability 0.001 g (0.5 D)
Min Weighing 0.004 g
Repeatability ±0.002 g
Linearity ±0.003 g
Pan Size Φ90 mm
Operating Temp 5–25 °C
Interface RS232
Draft Shield Size 175×165×230 mm
Packing Size 490×335×485 mm
Calibration Weight 100 g
Gross Weight 9 kg
