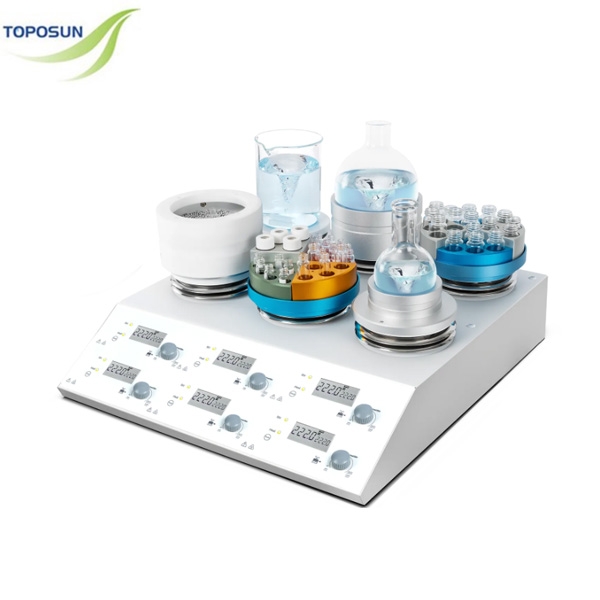

4/6 Channel LCD Digital Hotplate Magnetic Stirrer

short description:

  • Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
  • Powerful, rapid heating with accurate PID temperature control
  • Spark-free DC brushless motor with extended life and no maintenance
  • Compatible with various heating block or reaction vessels for a variety of application scenario
  • Ultra space-saving with 4/6 channel integrated in one instrument
  • “HOT” warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch.
  • Two independent safety circuits keep monitoring the instrument.When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
  • Reliable safety mechanism, compliant to IEC61010-1UL61010-1BSEN61010-1CANCSA-C22.2NO.61010-1and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance.


Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
8030271112
Work plate Dimension
Ø134mm
Work plate material
Aluminum with ceramic coating
Max. stirring quantity [H2O]
3LX4
Speed range
200-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
25-280℃
Temperature control accuracy
±1℃(<100℃), ±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000(accuracy±0.2℃)
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
4
Max. magnetic bar length
40mm
Data connector
-
Timer function
-
Protection class
IP21
Motor rating output
-
Power
605WX4
Heating output
600WX4
Voltage,Frequency
100-120V/200-240V,50/60Hz
Dimension [WxDxH]
701X265X127mm
Weight
8.7Kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
