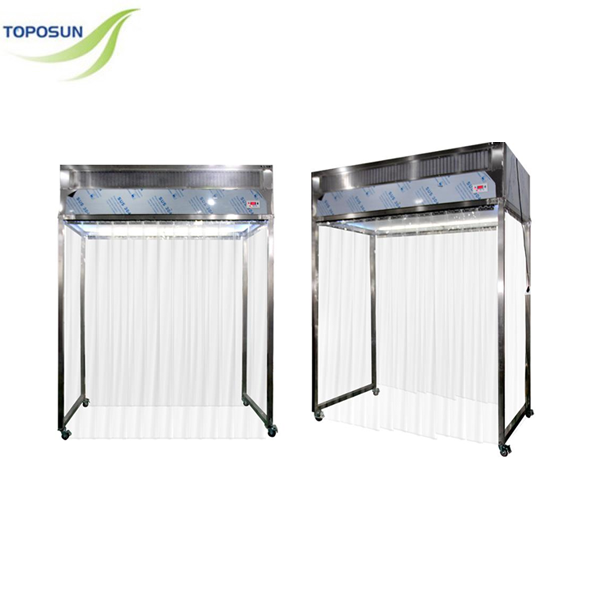

Clean Laminar Flow Booth

short description:

Clean laminar flow hood is a new type of structural laminar flow hood designed based on the actual situation of clean rooms, suitable for industries such as electronics, precision instruments, medical and food. It can be used by lifting or scaffolding.

Send email to us

Product Detail

Product Tags

Product Features
The use of vertical one-way flow purification principle of the air form, by centrifugal fan, plenum, gel-type HEPA filter, flow film combination of a single integrated structure.
Cleanliness leve: 100 (US Federal Standard 209E)
Average wind speed:0.25-0.45m/s
Power supply: 220V, 50HZ
Noise: 62dB(A)
Model Parameter FXCL-700 FXCL-1300 FXCL-1900 FXCL-2500
Purification area (mm) 650*610 1250*950 1850*1220 2450*1220
Overall dimension (mm) 700750750 13001100750 19001400750 25001400750
Power consumption (KW) 0.8 1.2 1.6
Gel-type HEPA filter 70050090mm*1 100050090mm*2 100050090mm*3 100055090mm*4
Burnnance 300LUX 300LUX 300LUX 300LUX
DOP test port YES YES YES YES
Differential pressure gauge YES YES YES YES
