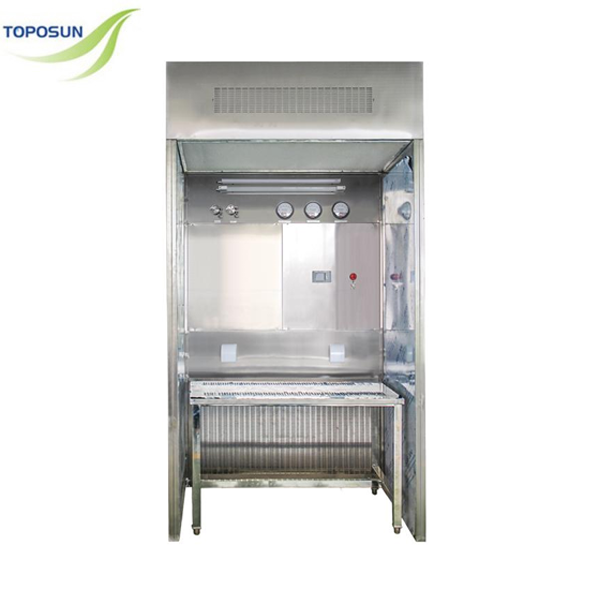

Negative Weighing Booth

short description:

The weighing booth is a partial purification equipment used in pharmaceutical, microbiological research, and scientific laboratories. It provides a vertical unidirectional airflow, with some clean air circulating in the work area and some discharged to nearby areas, causing negative pressure in the work area and preventing cross contamination. It is used to ensure a high cleanliness environment in the work area

Send email to us

Product Detail

Product Tags

Product Features
Fully made of stainless steel 304
Front windows are made of tempered glass
Equipped with UV lamp in the work area
With micro-computer interilock to ensure two doors won’t open at the same time
Dynamic pass box equipped with the fan and HEPA filter
Model Parameter ZJSJ-1000 ZSJ-1200 ZJSJ-1400 ZJSJ-1600 ZJSJ-1800
Cleanliness ISO5 (Class100)
Average wind speed 0.45±20%
lluminance ≥300LX
Noise ≤65dB (A)
Power supply AC380V, 36, 50Hz
internal size WDH mm 9009002100 11009002100 13009002100 15009002100 17009002100
External size W”D”H mm 100013502400 120013502400 140013502400 160013502400 180013502400
Weight 400Kg 450Kg 500Kg 550Kg 600kg
LED lamp specifications and quantity 15W*2 15W*2 15W*2 15W*2 15W*2
Material Stainless steel 304, thickness 1.0mm
