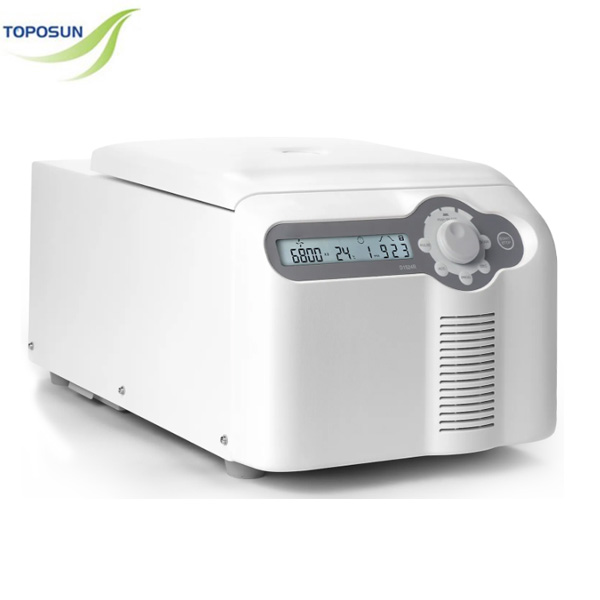

D1524R High Speed Refrigerated Centrifuge

short description:

    • Electronic Magnetic door locking system – the lid can be closed with one hand soft touch
    • Precooling, the compressor automatically starts     cooling as long as the set temperature is lower than the ambient temperature
    • Sound indicator at the end of running.
    • Temperature range -20℃ to 40℃
    • Short pre-cooling time of only 7minutes from room temperature to 4℃
    • Up to 9 program storage capacity
    • 3-layer sealed rotors ensure safe centifugation
    • High-strength aluminum alloy rotor can be fully autoclavable at 121℃
    • Rotor imbalance detection alarm
    • Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation
    • Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
    • An external condensation tank prevents water accumulation within centrifuge chamber


Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
9013111121
Speed range
15,000rpm (200-15,000rpm) in 100rpm increments.
Max. RCF
21,380×g, step: 10×g
Speed accuracy
-
Rotor type
-
Rotor capacity
1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18
Run time
30s-99 min; HOLD (continuous running)
Acceleration/Braking time
25s↑25s↓
Temperature setting range
-20℃- 40℃
Display
LCD
Power
500W
Voltage/Frequency
Single-phase,100-120V/200-240V, 50Hz/60Hz
Noise level
≤56dB
Motor type
Brushless DC motor
Dimensions[WxDxH]
332×553×283mm
Weight
30kg
Safety performance
Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
Other functions
Rotation speed/RCF switchover, inching operation, running processindicator, sound alert. Adjustable acceleration/deceleration at 9 levels program storage capacity.
