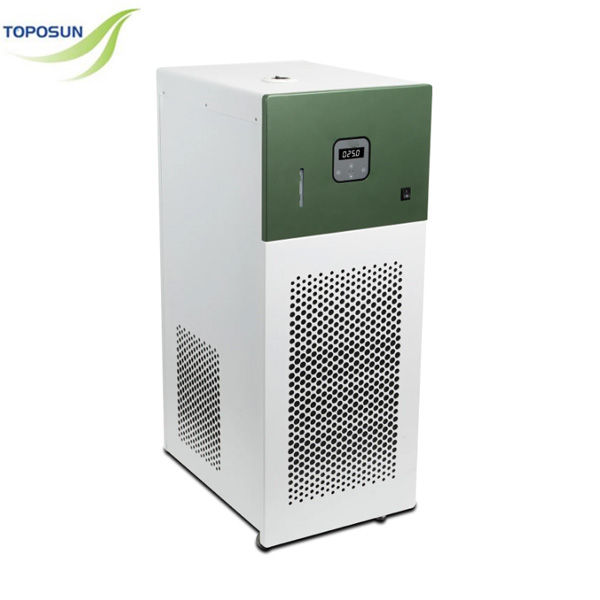

DCP-20 Low-Temperature Cooling Circulator
PRODUCT PARAMETERS
Temperature range
-20℃ to Room Temperature
Temperature control accuracy
±0.5℃
Temperature display
LED
Display accuracy
0.1℃
Temperature control method
Intelligent PID
Control temperature sensor
PT100
Cooling capacity @20℃
3200W
Cryogen
R404a
Maximum pump pressure
1.0bar
Maximum flow rate of pump
22L/min
Tank capacity
20L
Instrument fixing method
Floor standing
Allow continuous operation
100%
Internal diameter of external pipe mouth
10mm
Overall Dimensions (WxDxH)
450×600×1100mm
Power Supply
100-120V/200-240V,50/60Hz
Power
1500W Max.
Electric current
7.5A Max.
Allow ambient temperature
5-40℃
Allow relative humidity
80%
