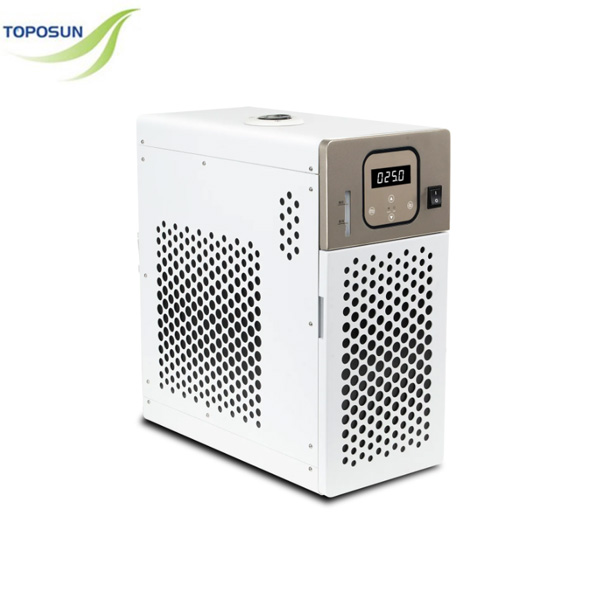

DCP-5 Low-Temperature Cooling Circulator

short description:

The low-temperature cooling circulator (or thermostat) is an effi temperature through pumping low-temperature cooling fluid. It is cient temperature control device that regulates suitable for laboratories, pharmaceuticals, chemicals, and semiconductor industries where stable low-temperature environments are required.

  1. Easy Operation: LED display, simple menu, one-touch start.
  2. Compact Design: Small size, suitable for desktops and fume hoods.
  3. Precise Temperature Control: Built-in sensor and PID technology ensure high temperature stability.
  4. Convenient Handling: Top liquid filling, rear draining, clear liquid level, with overflow protection.
  5. Rapid Response: Quickly adjusts to load and temperature changes, with strong adaptability.
  6. Eco-Friendly Refrigerant: Non-toxic, non-polluting, with excellent cooling performance.
  7. Energy Efficiency: Proportional cooling adjustment for low-energy operation.
  8. Stable Circulation System: Powerful pump ensures uniform cooling.
  9. Extended Lifespan: Low-speed operation reduces wear.
  10. Low Noise: Suitable for quiet environments.
  11. Easy Cleaning: Removable panel for easy filter cleaning and convenient drainage.
  12. High-Quality Insulation: Reduces heat exchange, ensuring temperature stability.
  13. Rapid Heat Dissipation: Prevents overheating, maintaining stable equipment operation.

Application

  1. Laboratory Cooling: Provides stable low-temperature environments for condensers, rotary evaporators, spectrometers, and other equipment.
  2. Chemical Reaction Cooling: Controls reaction temperatures, preventing overheating and ensuring product quality.
  3. Pharmaceutical and Biotech Applications:ore. Precise low-temperature control for freeze drying, enzyme reactions, blood preservation, and more.
  4. Semiconductor Manufacturing: Supplies low-temperature environments for semiconductor equipment, ensuring process stability.
  5. Food and Beverage Processing: Maintains constant low temperatures during food processing and storage, extending product freshness.


Product Detail

Product Tags

PRODUCT PARAMETERS
Temperature range
-20℃ to Room Temperature
Temperature control accuracy
±0.3℃
Temperature display
LED
Display accuracy
0.1℃
Temperature control method
Intelligent PID
Control temperature sensor
PT100
Cooling capacity @20℃
700W
Cryogen
R404a
Maximum pump pressure
0.3bar
Maximum flow rate of pump
22L/min
Tank capacity
4.5L
Instrument fixing method
Floor standing
Allow continuous operation
100%
Internal diameter of external pipe mouth
8mm
Overall Dimensions (WxDxH)
230×490×450mm
Power Supply
100-120V/200-240V,50/60Hz
Power
700W Max.
Electric current
3.5A Max.
Allow ambient temperature
5-40℃
Allow relative humidity
80%
