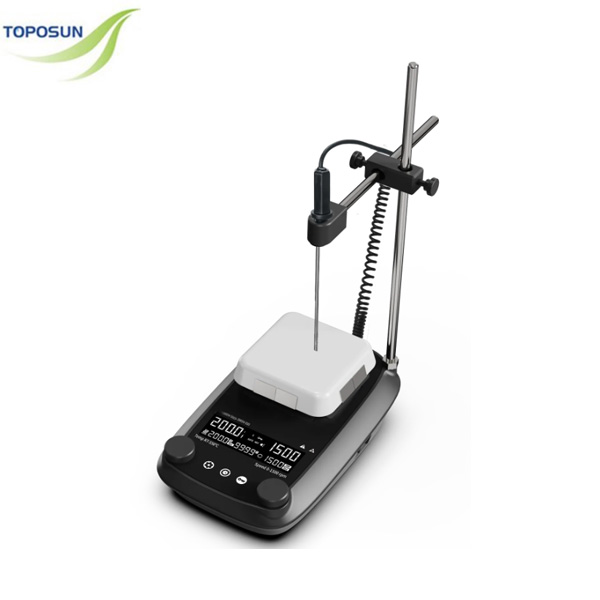

DMS4-550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer

short description:

  • The ceramic-coated plate offers excellent corrosion resistance, capable of withstanding strong acids, strong alkalis, and high temperatures. It is easy to clean spilled solvents, oils, or other contaminants.
  • The corrosion-resistant full metal housing provides good heat dissipation and reliable fire protection.
  • The efficient drainage platform and raised waterproof edge prevent liquids from entering the machine and corroding internal electronic components.
  • Selected high-temperature resistant strong magnets provide powerful stirring force, suitable for mixing viscous liquids.
  • The safety lock prevents accidental changes to the operating status.
  • Buzzer: When a fault occurs or the timer countdown ends, the buzzer emits a “beep beep beep” alert sound.
  • Residual heat warning function: When the plate temperature exceeds 50°C, heating is turned off and the screen displays a flashing “HOT” warning. Even after power-off, the display continues to flash “HOT” to indicate high temperature.
  • Dual independent safety circuits continuously monitor the device. In the event of overheating or sensor failure, the machine shows an error and stops heating. If a short circuit occurs, the power is automatically cut off to ensure operator safety.
  • The brushless DC motor is spark-free, long-lasting, low-noise, maintenance-free, and runs smoothly.
  • The LCD displays both set and real-time values for speed, time, and temperature, providing clear and intuitive readouts.
  • Timer function: Settable from 1 minute to 99 hours 59 minutes. When the countdown ends, heating stops but stirring continues, preventing thermal damage to samples.
  • Remote control function is available, allowing connection to a computer.
  • Safety temperature can be preset.


Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
8021492211(Main Unit)/8121492211(Set)
Work plate Dimension
100x100mm(4inch)
Work plate material
Glass ceramic
Max. stirring quantity [H2O]
10L
Speed range
50~1500rpm,increment 1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-550℃,increment1℃
Adjustable safety temperature range
50-580°C
Temperature control accuracy
±1℃(<100℃) | ±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000(accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
580℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
40mm
Data connector
RS232
Timer function
1min-99h59min
Protection class
IP21
Motor rating output
10W
Power
460W
Heating output
410W
Voltage,Frequency
100-120/200-240V,50/60Hz
Dimension [WxDxH]
270x175x108mm
Weight
2.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
