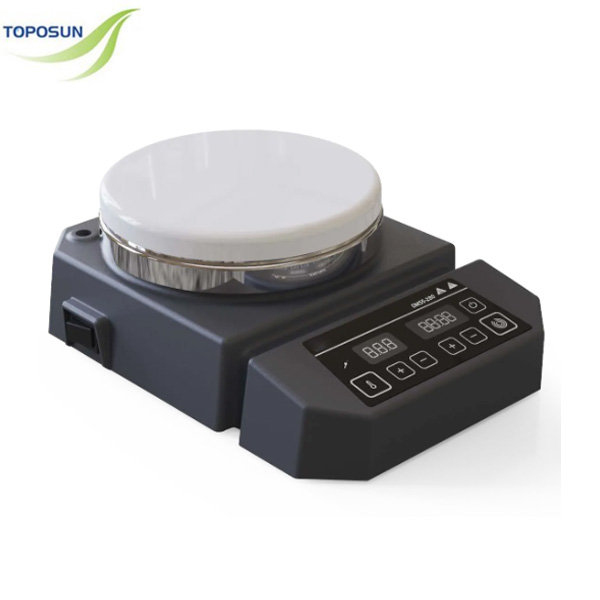

DMS5-280/120 LED Heating Magnetic Stirrer

short description:

  • Equipped with an LED display, it accurately shows temperature and speed, providing real-time data during experiments and ensuring easy operation.
  • The speed runs stably, adapting to various experimental requirements and delivering uniform stirring results.
  • Temperature is adjustable, reaching up to 280°C(DMS5-280), suitable for a variety of heating experiments, with precise temperature control.
  • Supports dual temperature sensors, accurately monitoring the heating plate and solution temperatures, further enhancing heating efficiency and safety.
  • Overheat protection function: If the heating plate temperature exceeds 50°C, the screen automatically displays a flashing “HOT” warning. Even when powered off, the warning remains visible, enhancing safety during use.
  • Features a ceramic-coated heating plate, offering excellent heat conductivity, corrosion resistance, and wear resistance, making it suitable for long-term high-temperature use.
  • Equipped with a touch panel, it provides simple and intuitive operation, improving user experience. Its compact design makes it easy to operate and store in laboratory environments.
  • Powerful magnetic stirring performance, ensuring uniform stirring of various solutions to meet diverse experimental needs.


Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
8021101412
Work plate Dimension
Ø135mm
Work plate material
Aluminum with ceramic coating
Max. stirring quantity [H2O]
5L
Speed range
50-1500rpm,increment 10rpm
Speed display
LED
Temperature display
LED
Heating temperature range
Room Temp.-280℃
Temperature control accuracy
±1℃(<100℃) | ±1%(>100℃)
Temperature display accuracy
±1℃
External temperature sensor
PT1000(accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
320℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
40mm
Data connector
-
Timer function
-
Protection class
IP21
Motor rating output
3W
Power
680W
Heating output
600W
Voltage,Frequency
100-120/200-240V,50/60Hz
Dimension [WxDxH]
260×150×100mm
Weight
1.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
