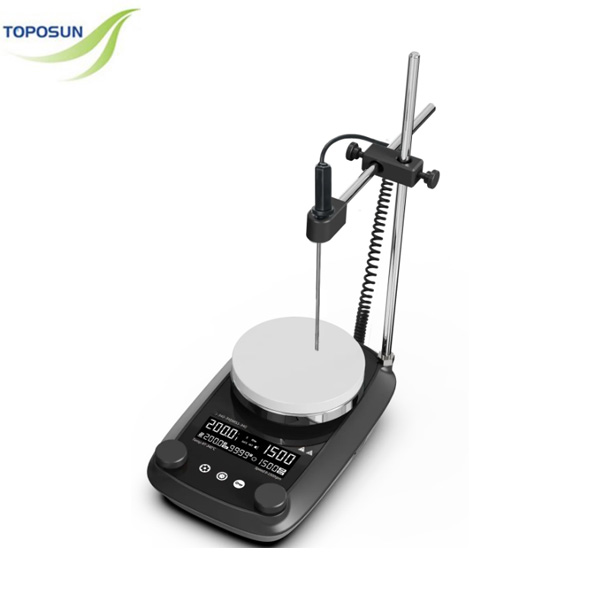

DMS5-340 LCD Heating Magnetic Stirrer with Timer

short description:

  • Ceramic-coated aluminum plate, with strong corrosion resistance and easy to clean.
  • Corrosion-resistant full metal casing with excellent heat dissipation performance and reliable fire protection capabilities.
  • Strong magnetic field, ideal for mixing viscous samples.
  • High protection level: IP42.
  • Heating modes:

A: Rapid heating mode

B: Standard heating mode

C: Stable heating mode

  • To meet different customer needs.
  • Safety lock to prevent accidental changes in operating status.
  • Buzzer: When the machine malfunctions or the countdown for the timing function ends, the buzzer emits a “beep” sound to alert the user.
  • Residual heat warning: When the plate temperature exceeds 50°C, heating will be automatically turned off, and the display will show a flashing “HOT” warning. Even when the power is turned off, the “HOT” warning will continue flashing on the display, alerting the user of the high temperature.
  • Two independent safety circuits continuously monitor the device. In case of overheating, sensor malfunction, or system error, the machine will stop heating. If a short circuit occurs, the power will be automatically cut off, ensuring the operator’s safety.
  • DC brushless motor: Spark-free, long lifespan, low noise, maintenance-free, and smooth operation.
  • LCD display shows set and real-time values for speed, time, and temperature, offering clear and intuitive readings.
  • The timer function is available with a range of 1 minute to 99 hours and 59 minutes. Once the countdown ends, heating will stop, but stirring will continue to avoid thermal damage to the sample.
  • Remote control function is available, allowing the device to be connected to a computer.
  • The device comes with a variety of accessories, making it suitable for chemical synthesis laboratories in universities, research institutes, and enterprises.
  • Safety temperature can be set.


Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
8021522210(Main Unit)/8121522210(Set)
Work plate Dimension
Ø135mm(5inch)
Work plate material
Aluminum with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
50~1500rpm,increment 1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-340℃,increment1℃
Adjustable safety temperature range
50-370℃
Temperature control accuracy
±1℃(<100℃) | ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000(accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
1min-99h59min
Protection class
IP42
Motor rating output
10W
Power
650W
Heating output
600W
Voltage,Frequency
100-120/200-240V,50/60Hz
Dimension [WxDxH]
270x175x98mm
Weight
2.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
