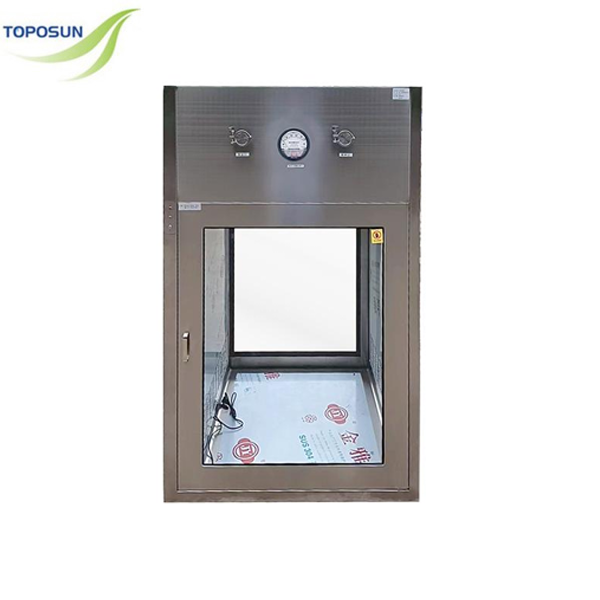

GMP Standard Pass Box

short description:

The pass box is an auxiliary equipment for clean rooms, mainly used for the transfer of small items between clean and non clean areas, in order to reduce the number of open doors in the clean room and minimize pollution to the clean room.


Product Detail

Product Tags

Product Features
Fully made of stainless steel304
Front windows are made of tempered glass
Equipped with UV lamp in the work area
With micro-computer interlock to ensure two doors won’t open at the same time
Dynamic pass box equipped with the fan and HEPA filter
Type internal size mm(WDH) External size mm(WxD*H)
Static Pass Box 400x400x400 585×466×520
500×500×500 685×566×620
600×600×600 785×666×720
700×700×700 885×766×820
800x800x800 985×866×920
900×900×900 1085×966×1020
1000×1000×1000 1185×1066×1120
Dynamic Pass Box 400×400×400 585×466×900
500×500×500 685×566×1000
600×600×600 785×666×1100
700x700x700 885×766×1200
800×800×800 985×866×1300
