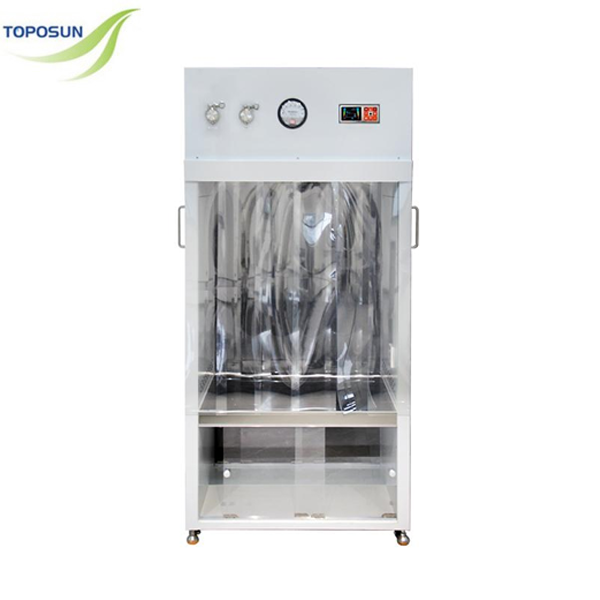

JC Series Clean sampling vehicle

short description:

The air passes through the primary filter, it is compressed into the static pressure box by a centrifugal fan, and then filtered by the HEPA filter before being blown out from the air outlet surface, forming a clean airflow. The clean airflow flows through the area that needs to be purified at a uniform cross-sectional wind speed, taking away the dust particles in the area, thus forming a high cleanliness working environment

Send email to us

Product Detail

Product Tags

Product Features
The glass can be moved up and down which is convenient and flexible for use.
Adopting an adjustable air volume fan system with electrical remote control.
Uninterruptible power supply for easy sampling and use.
Using dust-free and fireproof high-density board materials as the framework.
Parameter Model JC-900 JC-1200
Cleanliness Level 100 @ 0.5μM (Federal 209E)
Number of colony ≤0.5 pieces/dish – hour ( Φ 90 mm culture plate)
Average wind speed 0.25~0.45m/s
Noise ≤62dB (A)
Vibration half peak ≤5μM (x, y, z)
Burnnance ≥300Lx
Power supply AC single phase 220V/50Hz
Maximum Power consumption 800W
Intemal size (mm) W1×D1×H1 730635930 (1300) 1030635930 (1300)
External size (mm) WxDxH 8856901910 11856901910
HEPA filter specifications and quantity 72560050*1 102560050*1
LED/UV lamp specifications and quantity 20W1/20W1 30W1/30W1
