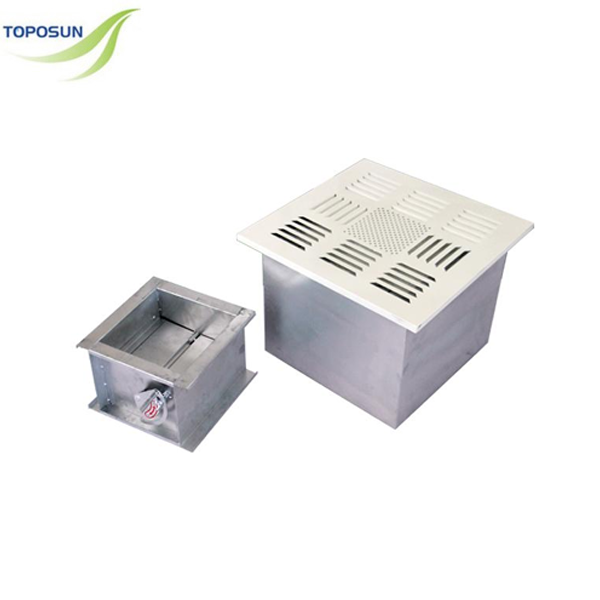

Product Features
The box is made of high-quality cold-iled steel plate, the outer surface is treated with electrostatic spray, and the flow plate is distributed
Bottom mounted high efficiency filter, easy to replace.
Compact structure, reliable sealing performance, side air inlet and top air inlet, fange mouth has two kinds of square and round structure.
Sometimes, when the clean room is limited by the height of ciil construction or must adopt a compact design, the integrated high efficiency filter outiet can be selected.
Fitration efficiency:≥99.99%(≥0.3um dust particles) P tpe:Fitration efficiency:≥99.995%(≥0.3um dust particles)
Initial resistance: ≤230Pa
There is insulation layer, stainless steel material to choose from
Air volume (m2/h) Filter size (mm) Hole size (mm) Case size (mm) Case Height Diffuser plate Dimension (mm) Air valve size square valve) Air valve size (round value)
500 32032090 370*370 360*360 320 420 430*430 200*200 diameter200
1000 48448490 540*540 530*530 320 420 600*600 320*200 diameter250
1500 63063090 680*680 670*670 320 420 740*740 400200 / 320250 diameter300
2000 96848490 1020*540 1010*530 320 420 1080*590 500*200
3000 126063090 1320*690 1310*680 320 420 1370*740 600*250
