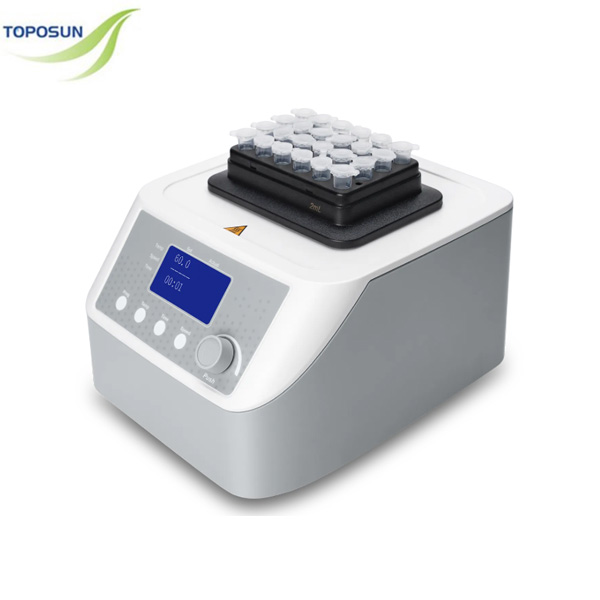

HCM100-Pro Thermo Mix（Mechanical fixation）

short description:

Fully programmable
Precise temperature control for heating and cooling
Real-time display of speed, temperature and time
Excellent mixing (200-1500rpm)
Quick interchange of blocks without tools and automatic block recognition
Compatible with most popular tubes
Block equipped with a lid for heat preservation
Temperature self-calibration

Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
5062143100
Temperature range
Below room temp 15-100℃
Temperature Setting range
0-100℃
Temperature control accuracy@20-45
±0.5℃
Temperature uniformity@20-45
±0.5℃
Time setting range
0min-99h59min
Max Heating speed
5.5℃/min
Max Cooling speed
5℃/min（100℃-room temp） 0.5℃/min（below room temp）
Functions
Heating/cooling/mixing
Mixing speed
200-1500rmp
Mixing orbit
3mm
Program memory
9
Overheating protection
150℃
Power
200W
Display
TFT
Voltage/Frequency
110/220V，50/60Hz
Dimension[WxDxH]
200x235x120mm
Weight
7.3kg
Permissible ambient temperature
10-40℃
Permissible ambient humidity
<80% RH
