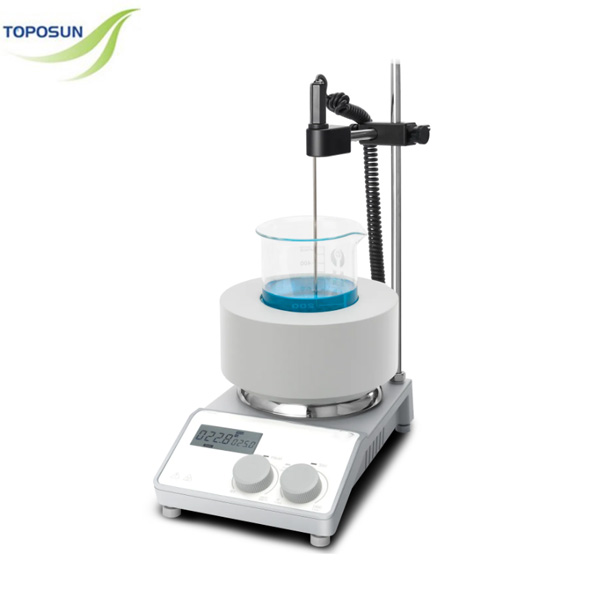

LCD Digital Magnetic Stirrer with Electric Heating Mantle
PRODUCT PARAMETERS
Cat.No.
8017373100
Work plate Dimension
-
Work plate material
-
Max. stirring quantity [H2O]
-
Speed range
200-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
25-280℃
Temperature control accuracy
±1℃(<100℃), ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000(accuracy±0.2℃)
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
-
Max. magnetic bar length
-
Data connector
-
Timer function
-
Protection class
IP21
Motor rating output
1.8W
Power
-
Heating output
210W
Voltage,Frequency
100-120V,60Hz/200-240V,50Hz
Dimension [WxDxH]
295X160X160mm
Weight
3.7Kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
