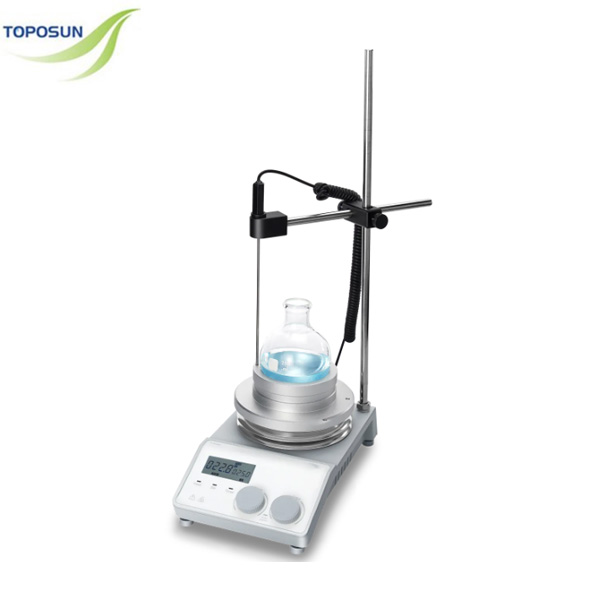

MS-H-ProM LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer
PRODUCT PARAMETERS
Cat.No.
8035221110
Work plate Dimension
Ø135mm (5 inch)
Work plate material
Aluminum with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
100-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room temperature ~ 340℃, increment 1℃
Temperature control accuracy
±1℃(<100℃),±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000 (accuracy±0.2℃ )
“Hot” warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
1min to 99h59min
Protection class
IP21
Motor rating output
10W
Power
720W
Heating output
600W
Voltage,Frequency
100-120/200-240V,50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
