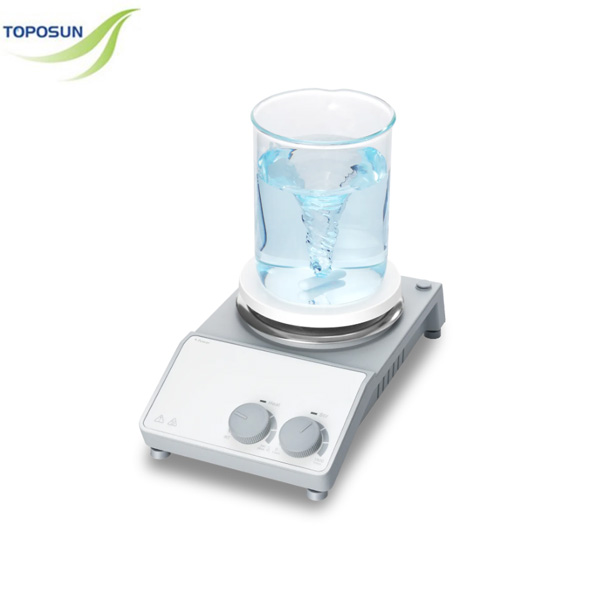

MS-H-S Security Analog Magnetic Hotplate stirrer

short description:

Brushless DC motor is maintenance free and explosion-proof
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
“HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
Work plate with ceramic coating provides good chemical-resistantperformance
Wide variety of accessories available to choose

Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
8030211010
Work plate Dimension
Ø135mm（5 inch）
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
0-1500rpm
Speed display
Scale
Temperature display
Scale
Heating temperature range
Room Temp.-340℃
Temperature control accuracy
-
Temperature display accuracy
-
External temperature sensor
-
“Hot” warning
-
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
-
Timer function
-
Protection class
IP21
Motor rating output
10W
Power
530W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
