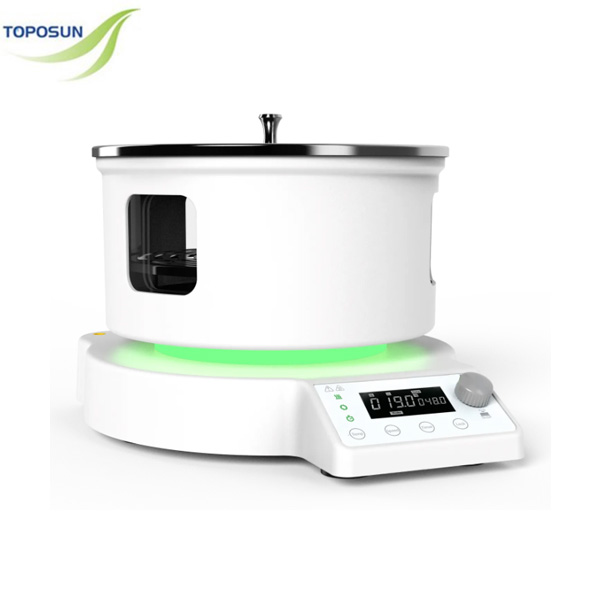

MS-H220-V3MS-H220-V5 LCD Digital Heating Magnetic Stirring Bath

short description:

  • High borosilicate glass liner, resistant to sudden changes from hot to cold without breaking, transparent glass window for monitoring reaction product changes; stainless steel base, rust-resistant, easy to clean; high-temperature
  • resistant protective outer shell to prevent direct contact with hot glass and burns.
  • Dual-use stirring bath for water and oil, with secondary stirring in the bath pot. The stirring of the bath liquid simultaneously stirs the liquid sample in the flask, ensuring uniform heating of both bath liquid and sample.
  • Safety lock to prevent accidental changes in operational status.
  • Buzzer: A “beep beep beep” alert sounds when the countdown timer function ends. Button tone.
  • Features a timer function with a range of 1 min to 99h59min. It stops heating when the countdown ends but continues stirring to prevent heat damage to the sample.
  • Touch buttons with audible prompts.
  • Working status indicator light: Green during operation, flashing green before reaching set temperature; alarm red.
  • Reversible function.
  • Protection features: dry burning protection, overcurrent protection, ground fault protection, and over temperature protection.
  • Residual heat warning function. When the plate temperature is above 50℃ , heating is turned off, and the screen flashes “HOT” as a reminder of the high temperature even after the power is off.
  • Two independent safety circuits continuously monitor the device. In case of overheating, sensor failure, or circuit short, the machine will error report and stop heating or automatically cut off power to ensure operator safety.
  • DC brushless motor, spark-free, long life; low noise, maintenance-free, stable operation.
  • LCD displays speed, time, and temperature parameters clearly and intuitively.


Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
8030324118
Work plate Dimension
Ø220×105mm
Work plate material
High borosilicate glass + stainless steel base
Max. stirring quantity [H2O]
3L
Speed range
100~1500rpm,±10rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-220℃
Temperature control accuracy
±1℃
Temperature display accuracy
0.1℃
“Hot” warning
50℃
Overheating temperature protection
350℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
40mm
Timer function
1min-99h59min
Protection class
IP21
Motor rating output
20W
Power
850W
Heating output
800W
Voltage,Frequency
100-120V,60Hz; 200-240V,50Hz
Dimension [WxDxH]
343×215×283mm
Weight
6.0kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
