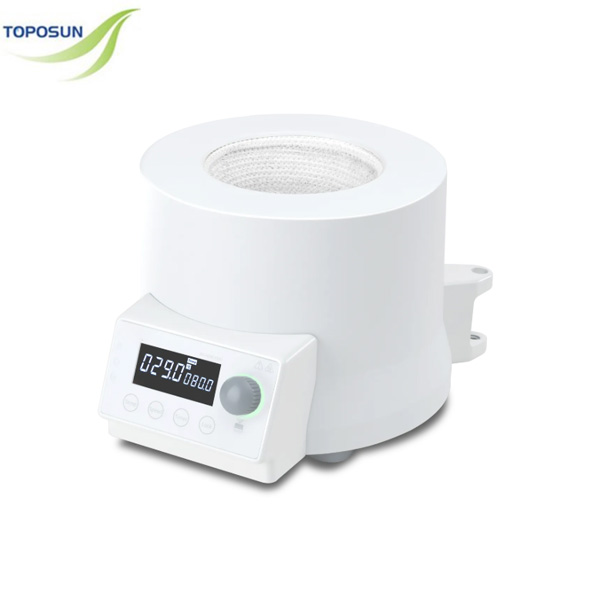

MS-H380-F100/250/500/1000/2000 LCD Digital Magnetic Stirrer Heating Mantle

short description:

  • Data communication:RS232 interface.
  • Buzzer alert: countdown timer end is indicated by a”beep-beep-beep” sound.
  • Timer function: time range from 1 minute to 99 hours 59 minutes. Heating stops when countdown ends, butstirring continues to avoid sample damage from residual heat.
  • Operating status indicator lights:Green is Reached to set temperature; Blinking green is heating to settemperature; Red is fault/alarm.

Application Scenarios

Organic synthesis,polymerization, distillation and purification,sample dissolution and extraction, sample pretreatment before analysis, catalytic reaction kinetics research, etc,

Target Customers

Technicians in chemical, biological, pharmaceutical, and materials enterprises,researchers in universities and research institutes, quality control analysts in laboratories related to pharmaceuticals, food.environmental protection, etc.


Product Detail

Product Tags

PRODUCT PARAMETERS
Speed range
100-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
25-380°C
Temperature control accuracy
25-380°C
Temperature display accuracy
±0.1°C
External temperature sensor
PT1000(accuracy±0.2°C)
“Hot” warning
50°C
Overheating temperature protection
500°C
Motor type
Brushless DC motor
Data connector
RS232
Timer function
1min-99h59min
Protection class
IP21
Motor rating output
5W
Power
130W
Heating output
110W
Voltage,Frequency
100-120V,60HZ;200-240V,50Hz
Dimension [WxDxH]
267x227x169mm
Weight
3.8Kg
Permissible ambient temperature
5-40°C
Permissible ambient humidity
80%
Applications
100mL、250mL、500mL、1000mL、2000mL round bottom flasks
