Product Features
Automatic Internal Calibration
Using Databases
Count Weighing
Check Weighing
Percentage Weighing
Density
Statistics Function
Textile
Animal Weighing
Peak Hold
Recipe Function
GLP Setting
User Setting
Baud Rate is adjustable
Applications
Pesticide Analysis
Ashing or incineration/weighing of chemically sensitive samples
Weighing of particulate matter
Specifications

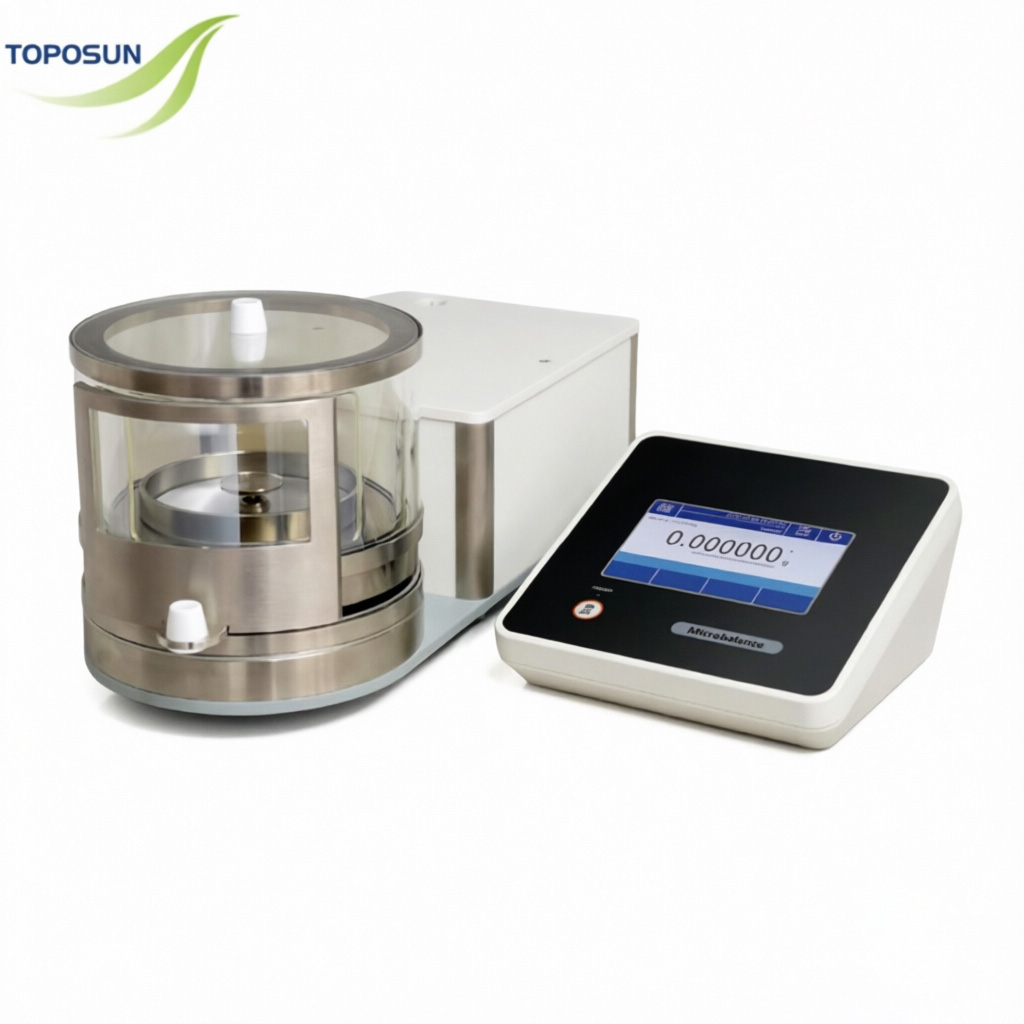

Model: MU-66i
Weighing (maximum): 6.1g
Readability [d]: 0.001 mg
Tare weight range: -6.1g
Minimum load: 0.1 mg
Repeatability (standard deviation) (2g): 0.004 mg
Repeatability (standard deviation) (maximum): 0.005 mg
Typical repeatability (standard deviation) (2g): 0.003 mg
Typical repeatability (standard deviation) (maximum value): 0.004 mg
Minimum weighing (USP): 10 mg
Minimum weighing, typical (USP): 8 mg
Typical linear deviation: ±0.01 mg
Eccentricity deviation, typical (test load): 0.01mg(2g)
Stabilization time: ≤8s
Adjustment: Automatic internal
Typical sensitivity shift: ±2ppm/°C
Display: 5 Inch color touch screen
Language: Italian/English/Portuguese/German/French/Spanish/Chinese
Interface: RS232, USB
Pan size: Φ30mm
Operating environment: +15°C‑+30°C, 45‑65% Relative humidity (non condensing)
Change rate of operating temperature: ±0.5°C/h
Relative humidity change rate: ±2%/h
Power supply (balance): 110‑230Vac, 50/60Hz; output 24V 1A multi plug
Power supply (ion generator): 110‑230Vac, 50/60Hz; output 12V 1A multi plug
Standard accessories: Ion generator, E2 weight (5g), tweezers, gloves
Size: 480(D) × 165(W) × 205(H) mm
Inner diameter of windshield: 165 mm
Distance from the pan to the top windshield: 75 mm
Display Size: 173(D) × 180(W) × 92(H) mm
