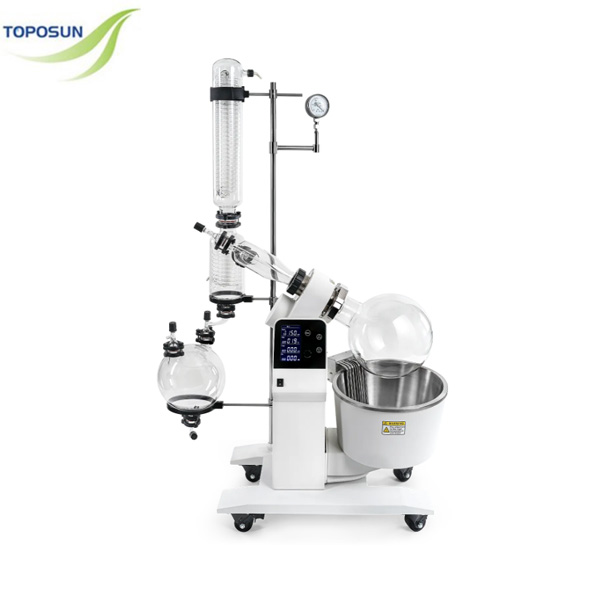

RE200- Pro 20L Industrial Digital Rotary Evaporator

short description:

Large LCD digital display with heating temperature, rotation speed, clockwise & anticlockwise and time information
One-click automatic motor lifting (stroke 180mm), smooth and silent
Water/oil heating bath with wide temperature range from RT to 180 °C
Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process
Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery
The connector device allows for easy and quick installation of the evaporating flask.
PTFE double sealing ring with excellent sealing performance
Switch valve for continuous collection without compromising the system vacuum and solvent distillation

Product Detail

Product Tags

PRODUCT PARAMETERS
Cat.No.
6030112124
Evaporating flask volume
20L
Temperature range
Room temp. -180℃ (water and oil bath)
Temperature control accuracy
Water: ±1℃ ；Oil: ±3℃
Speed range
10-150rpm
Direction of Rotation
Clockwise and counterclockwise
Evaporation capacity
Max.4.0L/h (water)
Ultimate vacuum
Less 2.6hpa
Temperature control
Micro processer PID control
Display
LCD (temperature/speed/clockwise and Anti-clockwise/time)
Timer
Yes
Time Setting Range
0-999min
Lifting mode
Motorized
Lifting stroke
180mm
Heating bath size
Ø450×240mm
Motor Type
Brushless DC motor
Heating Power
4400W
Power
4600W
Voltage/Frequency
220V，50/60Hz
Dimension[D×W×H]
1160×600×1860mm
Weight
106kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80% RH
Protection Class
IP20
USB Interface
-
Safety features
Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications
Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.
