Characteristics:

1. Advanced domestic electromagnetic balance force sensor with high precision and repeatability.

2. Rapid data acquisition rate, up to 10-100 updates per second, more accurate description of dynamic tension curve.

3. A variety of professional tension correction models are embedded to ensure the high accuracy of measurement data.

4. 5 inches wide touch screen control, current temperature, current tension, peak tension, equivalent tension and other information integration display, operation is very simple.

5. Design platinum plate, platinum ring at the same time two test methods, can choose one of them, can also choose two at the same time.

6. Fully automatic operation, eliminate all human error. Automatic lock liquid interface, display tension curve, automatic lock peak tension, without any conversion, direct screen display tension value. Automatic stop measurement, no manual operation, reduce manual error.

7. Full range automatic correction, support weight correction, pure water tension correction, ethanol tension correction.

8. Stepper motor control of the automatic lifting platform, the accuracy can be up to microns level, up and down smoothly, noiseless, through the touch screen up and down speed adjustable (1-300mm/min).

9. The unique semicircular arc opens and closes the door to isolate all external air flow influences.

10. Convenient lifting bracket for platinum plate and ring, easy to remove and install, and the accuracy of force value can be calibrated by standard weight at any time.

11. One-key peeling function, the number does not jump, zero drift.

12. Automatic temperature compensation, on the basis of water, ethanol, automatic conversion sample 20 ° C under tension values.

13. Convenient temperature control interface, equipped with a constant temperature sink can accurately control the temperature of the sample.

14. Powerful data collection and management software, no manual record; Users can query historical data at any time and export it into EXCEL data format to facilitate users’ secondary data development.

15. Meet but not limited to the following standards:

GB/T6541-86 ISO1409-1995 GB/T22237-2008 SH/T1156-95

ISO6295-1983 JB/T18396-2001 GB/T5549（ISO 304-1985）

16. Have the patent certificate of the instrument

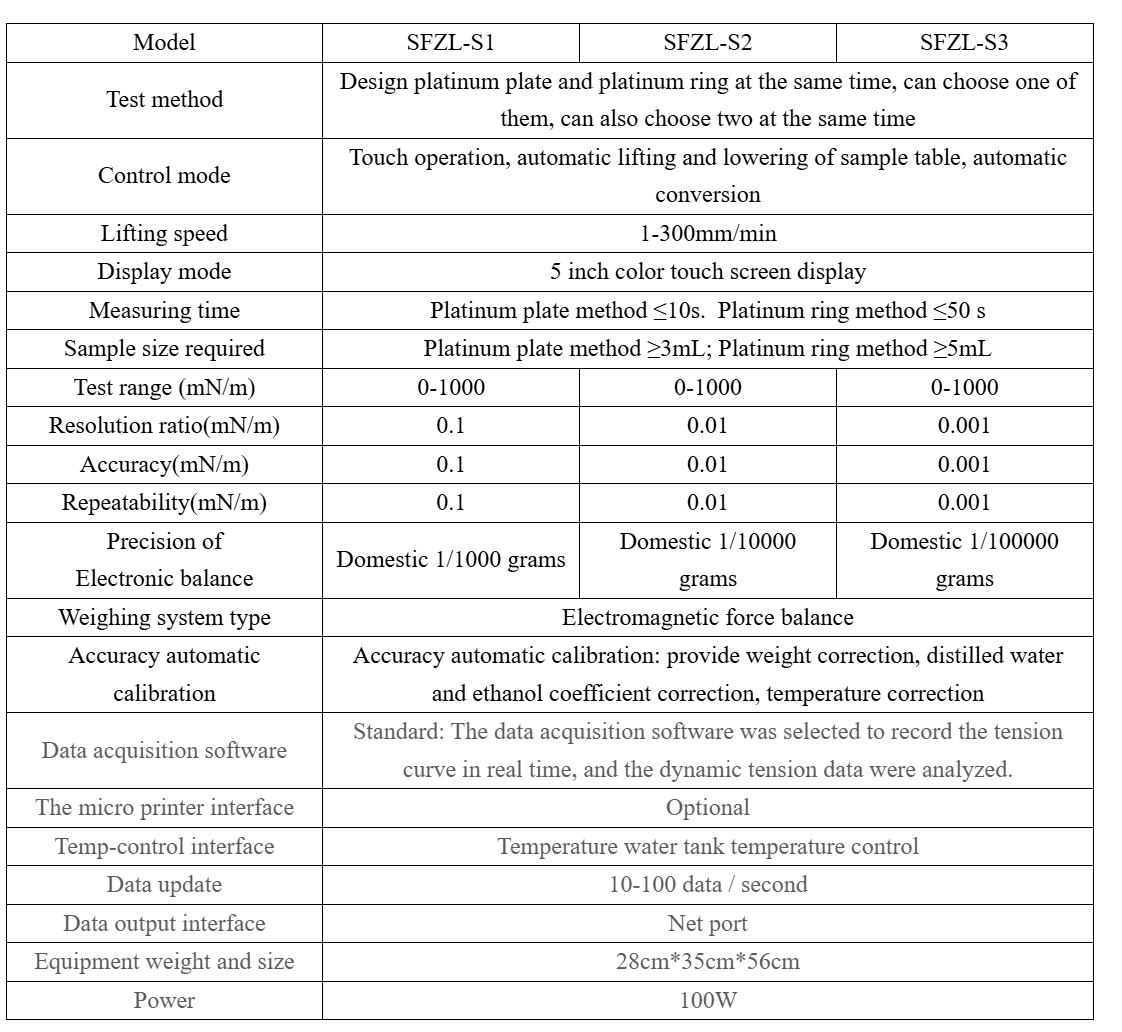

Parameter:
