Product Overview
Metals analyzer creatively combined with world leading argon circulation technology enables the analysis of Fe, Al, Cu and other bases materials. It is an ideal solution to fast and accurate quanti-tative analysis near the furnace, metal material quality control and scientific research.

Principle

M5000 series adopt the most advanced CMOS sensor technology, with a sturdy and stable constanttemperature dual-optical chamber structure, synthesis pulse digital source, and an intelligent logiccorrection program. Ensure that the analysis results are efficient, accurate, and reliable.

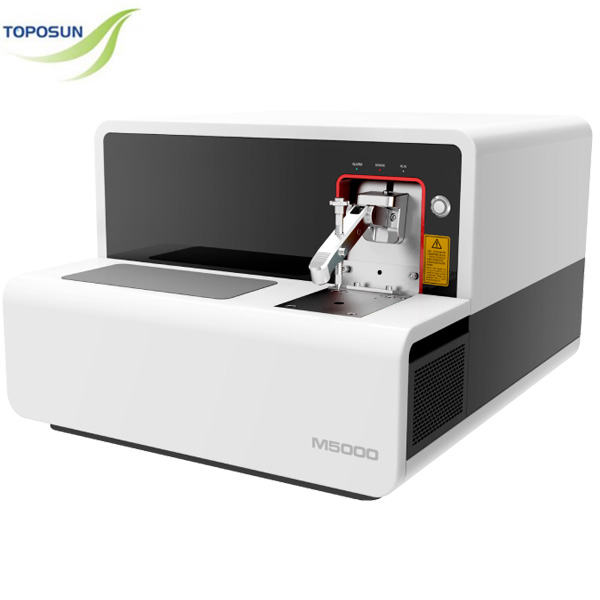

M5000 Spark AES Metal Analyzer Technical Specifications
Optical System Paschen-Runge Mounting
Power Supply Single Phase (220±20)VAC, (50±1)Hz
EMC IEC61000-4-2, IEC61000-4-4, IEC61000-4-5
Maximum Excitation Power 400VA
Average Standby Power 50VA
Sparking Power Supply Synthesis Pulse Digital Source
Spark Pulse 20~230V
Arc Excitation Pulse 20~60V
Working Temperature (10~30)°C
Working Humidity 20%~80%
Argon Purity Requirement 100.00%
Argon Inlet Pressure 0.5MPa
Argon Flow Standby Flow 0.1L/min; Excitation Flow 3.5L/min
Size/Weight L726 x W622.5 x H546.5mm / 80kg
Versatile Applications Across Industries
Metallurgy
Aerospace
Mechanical
Automobile
Aviation
Laboratory
Key Features of M5000 Spark AES Metal Analyzer
Compact designed desktop unit
Energy saving, standby power 100VA, no vaccum pump
Full wavelength coverage, customized factory calibration, adding new element without further hardware configuration
