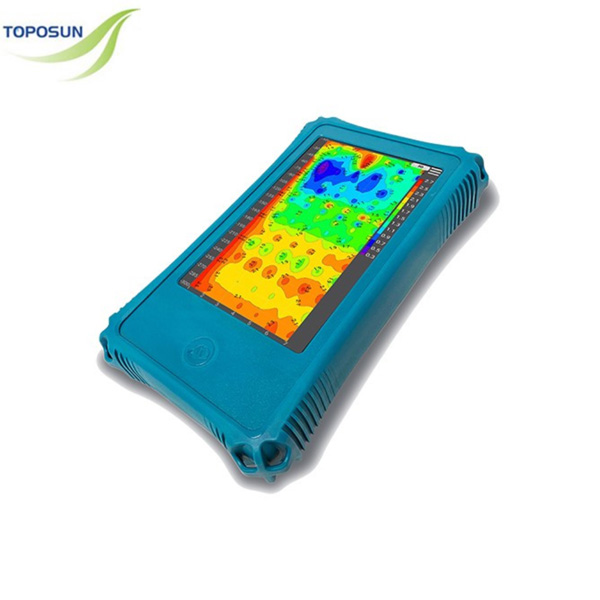

TOPOSUN’s Golden Rod Pro is completely wireless and easy to operate with significantly improved accuracy. It features segmented and multi-density scanning to meet specific customer needs. Equipped with AI intelligent analysis, it serves as your 24/7 free online assistant. It can also automatically generate 2D/3D/slice images, providing intuitive view of underground water sources, mineral resources, and geological structures, making it highly valuable for geological exploration.
TECHNICAL PARAMETERS
Versions TPS-ADMT-1G TPS-ADMT-1GT2 TPS-ADMT-1GT3 TPS-ADMT-1600WT4 TPS-ADMT-1600WT5
Max Depth 100 m 1600 m
Scan Interval 2/4 m 5/10/20 m
Battery 7.4V 2600mAH lithium battery, Power consumption approx. 140mA
Connection WIFI
MN Electrodes Four L-shaped alloy electrodes, each with a size of 100*95*30mm
Core Features custom depth range targeting, variety of scan density, auto 2D/3D imaging, AI interpretation of image, on/offline operation
TT Coil（mm/w） - 300/0.2 450/0.3 450/8 450/12
TT Iron Core（KmH/m） - 120 200 300 400
Ground Conditions soft ground only all grounds
Freq. Range (hz) 1-8K
Sensing Mode MN MN/TT
Discrim. 0.1mV±5% 0.01mV±1%
Acquisition Time (s) 14-350 14-2240
Main Unit Weight (kg) 0.8 1.9 2.6 3.3 4.0
Main Unit Size (mm) 340*71 650*71 790*71 940*71 1090*71
