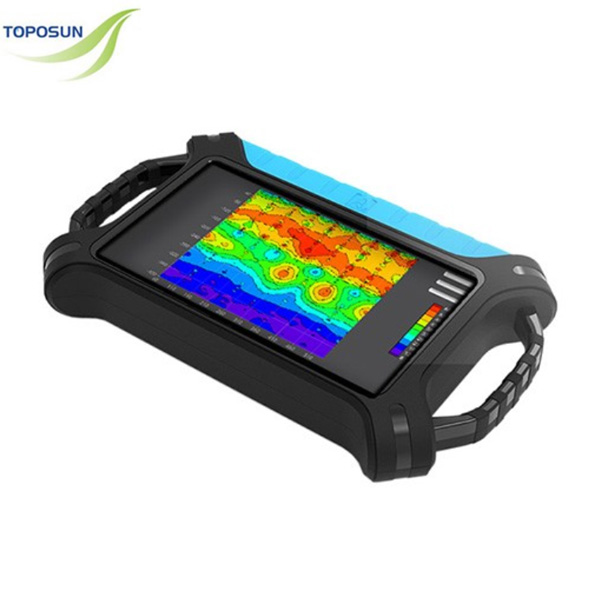

Automatic imaging.The 10.1″ Android touch screen is intelligent in real time into 2D, 3D and curved images.

Precise and stable.The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.

Triple screen interoperability.The instrument screen, mobile phone screen and computer screen are interoperable.

Intelligent and flexible.1-30 channels are available and an optional electromagnetic probe is available for TT probe measurement mode.

MODELS AND TECHNICAL PARAMETERS
Model ADMT-300AX-32D ADMT-600AX-32D ADMT-1200AX-32D ADMT-3000AX-32D ADMT-5000AX-32D
Max
depth (m) ≤300 ≤600 ≤1200 ≤3000 ≤5000
Channel
input 32 channels of simultaneous input with a standard electrode spacing of 2.5m, and optional spacings of 5m, 7.5m, or 10m
Channel
option 1-30
Adjustable
depth(m) 5-300 10-600 10-1200 60-3000 60-5000
Scan
Interval (m) 60-200
Connection Serial port, WiFi, Bluetooth 4.0, USB (Optional 4G)
Display 10.1 -inch, IPS wide Angle, 178° visual touch screen
Operating
system Android 13
CPU RK3568
GPU Mali G52
Main
function Depth optional, channel number optional, real-time 2D/3D imaging, battery removable
Measure
model MN/TT
Frequency
range (hz) 0.001-7K
Frequency
selective Preset frequency selection and intelligent frequency selection, analog + data filtering, 1-16 times stacking is optional
Resolution 0.001mV±2% 0.001mV±1%
Sampling
time (s) 1200-9000 280-14400
Battery 700mA/H 1100mA/H
Weight 2.2kg
