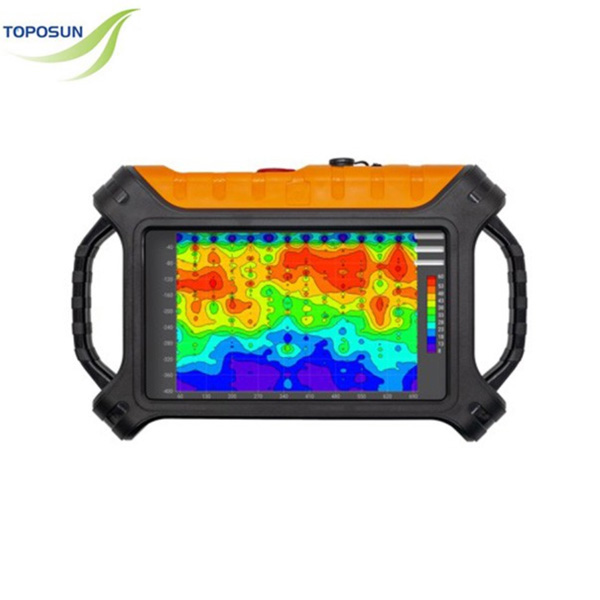

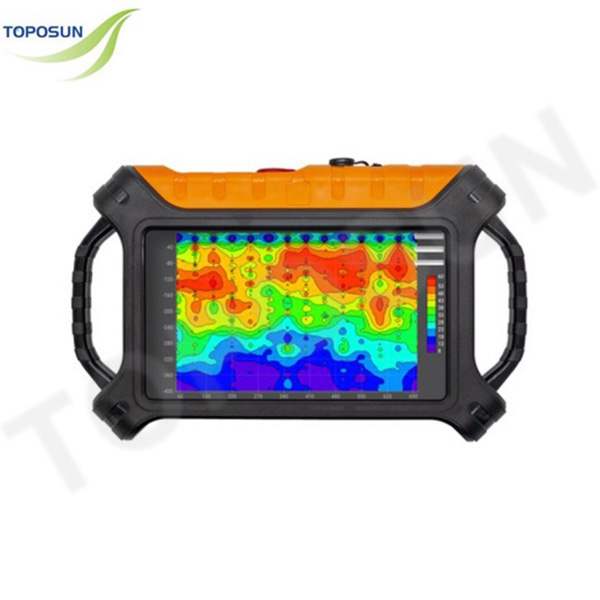

TPS-16 Channel Professional MT Electromagnetic Geophysical Equipment

short description:

Automatic imaging.The 10.1″ Android touch screen is intelligent in real time into 2D, 3D and curved images.

Precise and stable.The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.

Triple screen interoperability.The instrument screen, mobile phone screen and computer screen are interoperable.

Intelligent and flexible.1-14 channels are available and an optional electromagnetic probe is available for TT probe measurement mode.

Send email to us

Product Detail

Product Tags

MODELS AND TECHNICAL PARAMETERS
Model ADMT-300AX-16D ADMT-600AX-16D
Max depth (m) ≤300 ≤600
Channel input 16 channels of simultaneous input with a standard electrode spacing of 2.5m, and optional spacings of 5m, 7.5m, or 10m
Channel option 1-14
Adjustable depth 5/10/20/40/60/100/200/300m 60/100/200/300/400/500/600m
Layer division 10-100
Connection Serial port, WiFi, Bluetooth 4.0, USB (Optional 4G)
Display 10.1 -inch, IPS wide Angle, 178° visual touch screen (1024×600)
Operating system Android 13
CPU RK3568
GPU Mali G52
Main function Depth optional, channel number optional, real-time 2D/3D imaging, battery removable
Measure model MN/TT
Frequency range (Hz) 1-8K
Resolution 0.1mV±2%
Sampling time (s) 40-3600
Battery 900mA/H
Console Weight 1.9 kg
