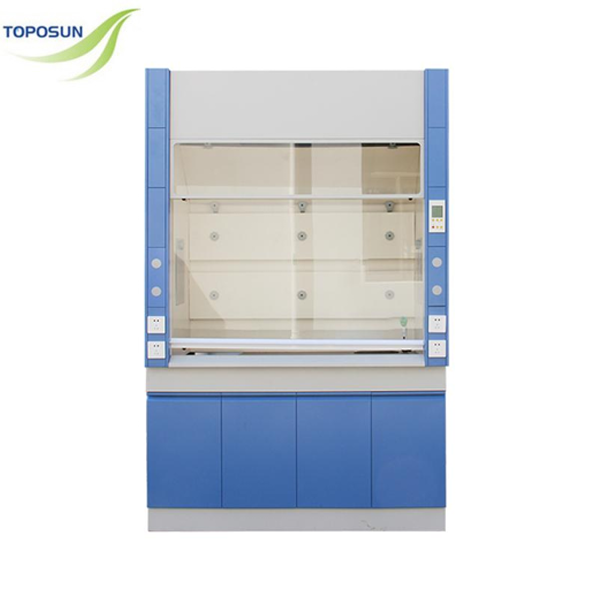

The all-steel structure Fume hood is formed by cutting, positioning, punching, bending and welding high-quality cold-rolled steel plates with a thickness of 1.0mm in a CNC machining center.
Product Features
The shell is made of 1.0mm thick high-quality cold-rolled steel plate, which is cut, positioned, punched, bent and welded in a CNC machining center before forming. After acid pickling and phosphating treatment, it is sprayed with epoxy resin powder for high-temperature baking and solidification.
Cold rolled sheet has high adhesion and beautiful appearance
The inner shell is made of 5mm gray ant magnification plate, a laboratory specific corrosion-resistant material that is resistant to acid and alkali organic solvents.
The inner shell is equipped with detachable maintenance holes for easy maintenance of circuits, waterways, and gas circuits
The operating table is made of 12.7mm solid core physicochemical board, which is resistant to acid and alkali, chemical solvent corrosion, non-toxic, and has a long service life
After all steel plates are welded with epoxy resin powder spray they are visually flat and have no solder joints.
All water, electricity, and gas pipelines are required to be safe, applicable, and installed in a concealed manner
Install maintenance holes on the back panel of the cabinet for easy maintenance and security checks.
Model Parameter ZJ-TFG-12 ZJ-TFG-15 ZJ-TFG-18
Exhaust speed 0.5m/sec 0.5m/sec 0.5m/sec
Voltage 220/300V 220/300V 220/300V
Maximum power 0.3KW 0.3KW 0.3KW
Weight 150KG 165KG 175KG
Work area size (mm)W1×D1×H1 9856551185 12856551185 15856551185
Overall dimension (mm)WxDxH 12008502350 15008502350 18008502350
Specification and quantity of LED lights 12W*1 12W*1 12W*1
