Product Features

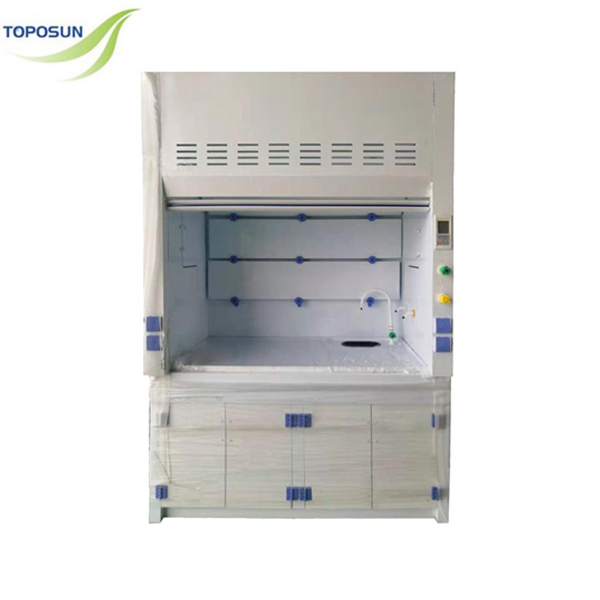

Cabinet: Made of 8-12mm thick (including) imported porcelain white PP, excellent acid and alkali resistance. After precise cutting processing, the same color homogeneous electrode fusion welding modification treatment, the surface without sharp Angle
Upper cabinet: Exhaust cabinet adopts top cover type extraction design, and has 1250mm exhaust vent. The baffle is made of homogeneous PP material with excellent acid and alkali resistance. The installation size is scientific and reasonable, no airflow dead Angle, to obtain the maximum exhaust gas capture performance.
The lower cabinet the storage cabinet with a partition in the middle
Mode Parameter ZJ-TFG-PP12 ZJ-TFG-PP15 ZJ-TFO-PP18
Exhaust speed 0.5m/sec 0.5m/sec 0.5m/sec
Voltage 220/300V 220/300V 220/300V
Maximum power 0.3KW 0.3KW 0.3KW
Weight 150KG 165KG 175KG
Work area size (mm)W1×D1×H1 9856551185 12856551185 15856551185
Overall dimension (mm)WDH 12008502350 15008502350 18008502350
Specification and quantity of LED lights 12W*1 12W*1 12W*1
