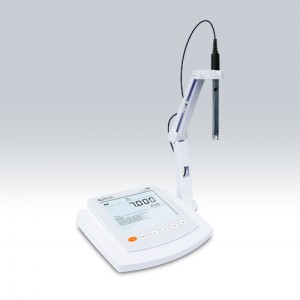

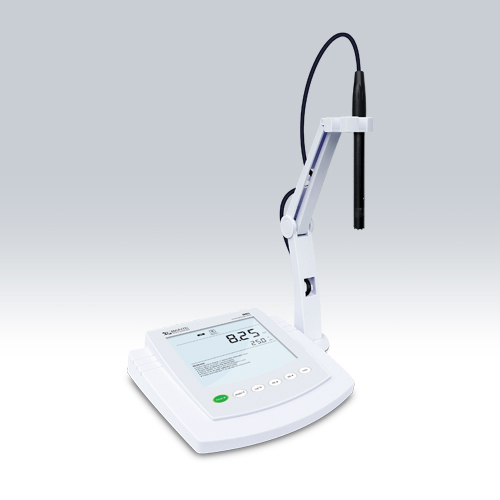

Bante810 Benchtop Dissolved Oxygen Meter
• Economical benchtop dissolved oxygen meter is equipped with a backlit LCD display.
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate the measurement error.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Setup menu allows setting the number of calibration points, concentration unit, temperature unit, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Research and education
• Environmental monitoring and other industrial applications
| Model | Bante810 |
| Dissolved Oxygen | |
| Range | 0.0 to 20.0mg/L |
| Resolution | 0.1mg/L |
| Accuracy | ±0.5mg/L |
| % Saturation of Oxygen | |
| Range | 0.0 to 200.0% |
| Resolution | 0.1% |
| Accuracy | ±2.0% |
| General Specifications | |
| Calibration Points | 1 or 2 points |
| Temperature Compensation | 0 to 40°C/32 to104°F, automatic |
| Pressure Correction | 60.0 to 112.5kPa/450 to 850mmHg, manual |
| Salinity Correction | 0.0 to 35.0g/L, manual |
| Sensor Type | DO100 polarographic probe |
| Connector | 6-pin nimi-DIN |
| Display | Custom LCD (120×60mm) |
| Power | DC9V, using AC adapter, 220V/50Hz |
| Dimensions | 210(L)×205(W)×75(H)mm |
| Weight | 1.5kg |
