It meets the following standards but is not limited to the following standards:

Compliance with ASTM(D3204，D3461，D3954，D6090) ，DIN(51920) ，ISO 4625-2 and European pharmacopoeia；GB/T 3498-2008；GB/T 2294-1997；

Summary:

This instrument adopts full computer control, automatic collection and automatic measurement.

The change curve of drop length is collected in real time by image processing technology, and the temperature of drop point is captured automatically by software.

10.8 inch touch screen control and display, the heating rate can be adjusted arbitrarily.

Technical advantages:

1. Built-in 10.8 inch industrial touch computer, with analysis software.

2. Embedded with 2-5 megapixel HD camera, the sample drop change process video is captured in real time.

3. Two samples can be measured simultaneously.

4. The rear end of the instrument is equipped with four-way USB interface and one-way WIFI network interface, which is convenient for external equipment like mouse, keyboard, laser printer and USB disk.

5. Linear heating rate is 0.1 ℃/min to 20.0 ℃/min and infinitely adjustable.

6. Streamline cooling and air duct design, fast cooling, improve sample test efficiency.

7. Equipped with 30G storage space, save test curve, video, play video, etc., support external storage to expand storage space.

8. There is no limit on the amount of the experimental method storage capacity, atlas storage capacity, etc.

9. Powerful database management function, product test data classification management, automatic linked drop point test picture.

10. Temperature multipoint correction function is provided to calibrate temperature coefficient through standard sample.

11. The software supports audit tracking, electronic signature, user hierarchical management, free allocation of rights and other functions. The traceability function is also supported, and traceability events can be derived.

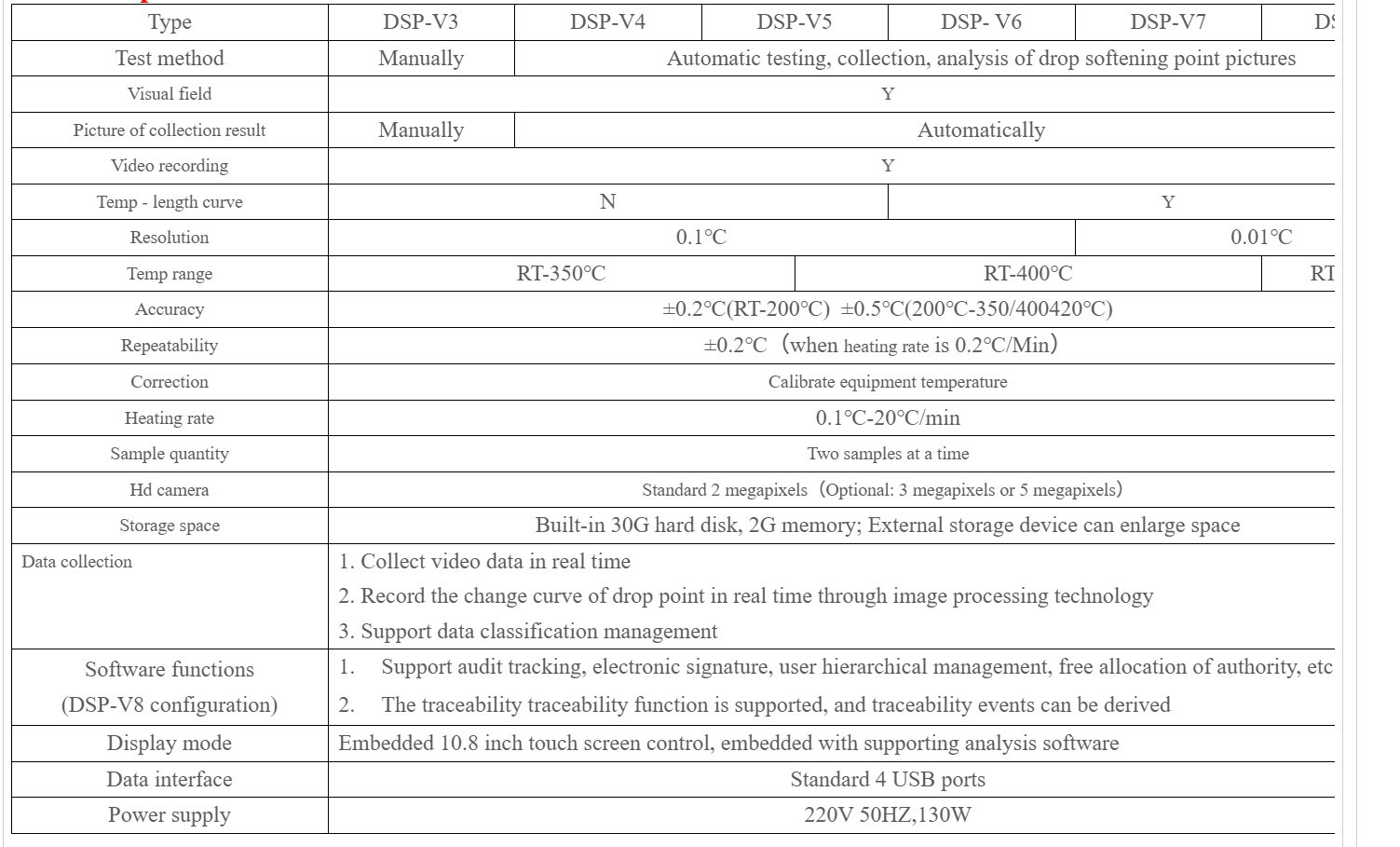

Technical parameters:
