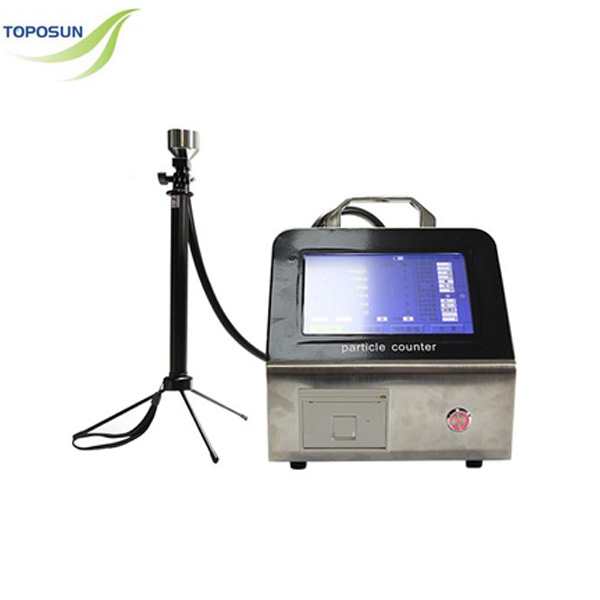

This product is a new generation high-end dust particle counter. The control mode has been upgraded from button control to touch screen control with a 7-inch colorful LCD touch screen and a large visual interface, making the operation more convenient and intuitive. The appearance design is atmospheric and simple, small in size, light in weight, easy to use, and the fully stainless shell can better meet GMP requirements.
Sampling flow rate 28.3L/min ±5% (1CFM)
Particle size channels 0.3um,0.5um,1um,3um,5um,10um
Light source Long Life Laser Diode
Repeatability relative error <±10%
Particle size distribution error <±30%
Maximum sampling concentration 35000 particle/Liter
Zero count ≤10min
Sampling time User defined (5‑9999S)
Storage capacity 5000 sets of measurement data
Display 7 inch colorful touch screen
Printer Built-in thermal Printer
Power supply AC 220V/50Hz
Battery DC 16.8V, 18Ah
Environment 0~40°C,10~90%RH
Overall dimension L210×W220×H270 mm
Material SUS304
Weight 4Kg
