Use
The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions,substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.

Characteristics
• Fully stainless steel structure.
• Automatically shut off with beep reminding after sterilization.
• Hand wheel type of quick-open door structure.
• Electric heated.
• Digital display of working status, touch type key.

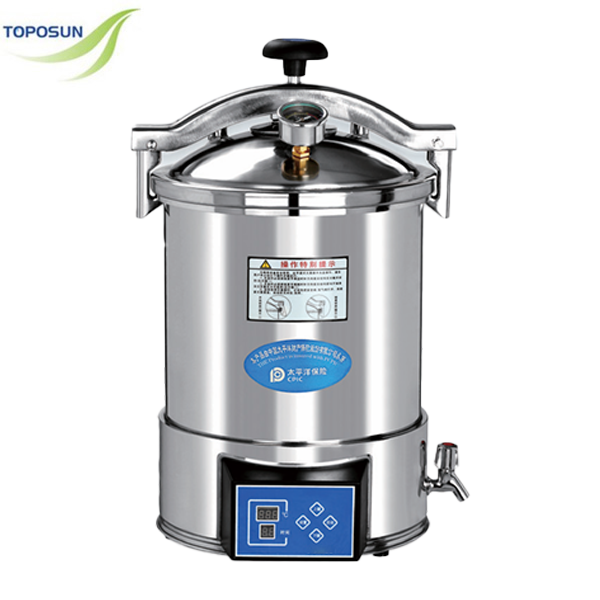

• Easy to operate, safe and reliable.Portable pressure steam sterilizer

Technical Data
MODEL

YX-18HDD

YX-24HDD

Technical Data

Sterilizing volume

18L

φ280×260mm

28L

φ270×500mm

Working pressure

0.14-0.16Mpa

Working temperature

126℃

Temperature adjust range

105-126℃

Timer range

0-99min

Max.Safety pressure

0.165Mpa

Heat average

≤±1℃

Power

AC220V 50HZ/2KW

Transport dimension（mm）

440×420×630

440×420×750

G.W/N.W

14/12Kg

15/14Kg
