Use
The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions,substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.

Characteristics
• Fully stainless steel structure.
• Automatically shut off with beep reminding after sterilization.
• Hand wheel type of quick-open door structure.
• Electric heated.
• Digital display of working status, touch type key.

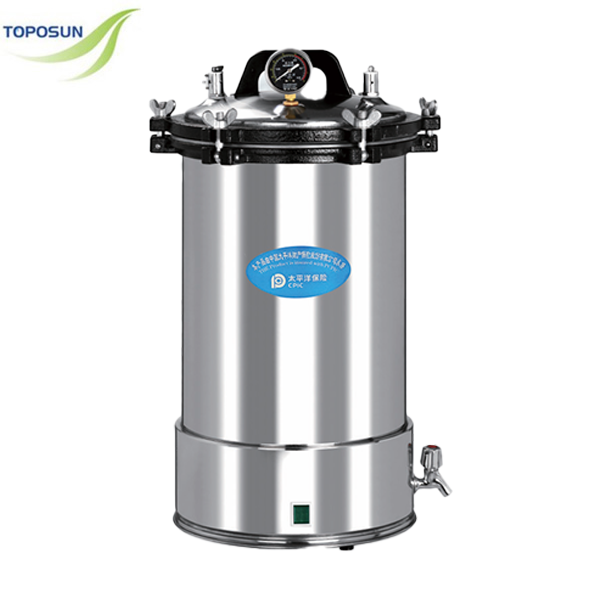

• Easy to operate, safe and reliable.Portable pressure steam sterilizer

Technical Data
MODEL

YX-18LD

YX-24LD

Technical Data

Sterilizing volume

18L

φ280×260mm

24L

φ280×390mm

Working pressure

0.14-0.16Mpa

Working temperature

126℃

Max.Safety pressure

0.165Mpa

Heat average

≤1℃

Power

AC220V.50Hz/2KW

Transport dimension（mm）

410×410×520

410×410×630

G.W/N.W

18/16Kg

19/17Kg
